NAMM02 Analysis and Simulation Module

NAMM02 Analysis and Simulation Module

Product Details Introduction

NAMM02 Analysis Simulation Module Product Features (15 points)

1. ABB Bailey original module, designed as an analysis and simulation unit specifically for Infi 90/Net 90 systems.

2. Focus on high-precision analog signal analysis and processing, suitable for industrial process parameter monitoring scenarios.

3. Supports multiple types of signal connections such as thermocouples (K/J/T type) and thermal resistors (PT100).

4. 16 bit high-resolution A/D conversion, with an analog input accuracy of ± 0.1% FS, capturing subtle changes.

5. Equipped with 8 analog input channels, signal types and range can be grouped and configured.

6. Built in RC low-pass filtering and digital filtering algorithms effectively suppress high-frequency interference of power frequency.

7. 2500V AC photoelectric isolation is installed between the input, output, and power supply to block ground loop interference.

8. Suitable for 24V DC wide voltage supply, with dual protection against overvoltage and overcurrent.

9. Support seamless linkage with ABB DCS system to achieve integrated data collection and analysis.

10. Equipped with channel level fault diagnosis, it can detect signal open circuit, short circuit, over range and alarm.

11. It can withstand a wide temperature range of -40 ℃ to 70 ℃ and is suitable for harsh working conditions with 95% high humidity and no condensation.

12. Modular and compact design, supporting DIN rail installation, suitable for small control cabinet spaces.

13. The sampling rate is adjustable, up to 100ms/channel, meeting the requirements of fast response control.

14. Anti corrosion coating treatment on PCB board to resist industrial corrosive gas erosion and extend service life.

15. Adapt to fields such as heat exchange stations, chemical engineering, and power, and assist in unmanned automation operations.

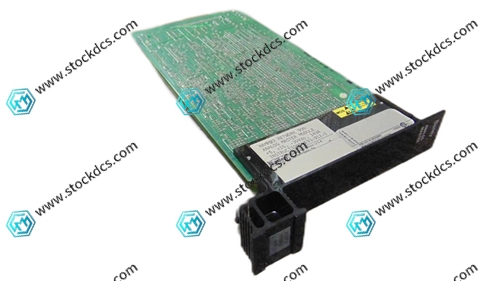

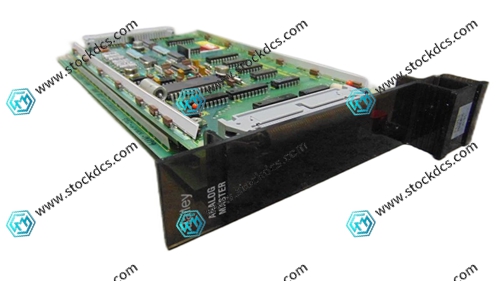

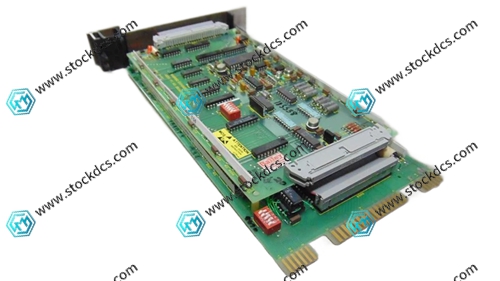

NAMM02 Product imag

NAMM02 ontroller Module
