HESG446933R0002 70AB02B-E Bidirectional Contactor

HESG446933R0002 70AB02B-E Bidirectional Contactor

Product Details Introduction

HESG4466933R0002 70AB02B-E Bidirectional Contactor Core Points

This model is a dedicated contactor for ABB to adapt to industrial bidirectional circuits, focusing on DC/AC bidirectional on-off control, suitable for frequency conversion, power switching and other scenarios. The 15 differentiated and simplified points are as follows:

Brand and model: ABB HESG446933R0002 (70AB02B-E), industrial grade bidirectional contactor, suitable for DC/AC bidirectional circuit control.

Core function: Supports bidirectional current switching, adapts to bidirectional control requirements such as motor forward and reverse rotation, power polarity switching, etc.

Rated parameters: The main contact is compatible with commonly used industrial voltage/current levels and meets typical motor control usage categories such as AC-3.

Contact configuration: The main contact is made of silver alloy material, with low contact resistance, arc resistance, and excellent electrical and mechanical life.

Coil characteristics: Suitable for industrial standard control voltage, optional energy-saving coil, reducing long-term operating power consumption.

Product Features

Bidirectional arc extinguishing: Built in bidirectional arc extinguishing system, which quickly extinguishes the arc when breaking DC/AC current, avoiding contact welding.

Electrical isolation: The main circuit and control circuit have high insulation levels, are resistant to surges and electromagnetic interference, and are suitable for complex working conditions.

Status indication: Equipped with LED indicators for coil power on and contact on/off status, making on-site inspections intuitive and efficient.

Easy installation: standard DIN rail installation, anti loose design of wiring terminals, suitable for dense deployment and vibration environment of control cabinets.

Protection function: Built in overcurrent and overload protection, some specifications support short-circuit withstand, protecting equipment and circuit safety.

Adaptation and Application

System compatibility: compatible with mainstream PLC systems such as ABB AC31, supporting configuration and debugging of Freelance Control software.

Motor control: used for switching between forward and reverse rotation of small and medium-sized asynchronous motors, variable frequency speed regulation, and adapting to equipment such as fans and water pumps.

Power switching: Suitable for bidirectional power systems such as UPS and photovoltaic inverters to achieve fast switching of power supply circuits.

Industrial automation: Suitable for bidirectional power control of pneumatic/hydraulic actuators on production lines, ensuring precise switching of actions.

Safety specifications: comply with IEC/EN industrial electrical safety standards, flame retardant enclosures and components, enhance system safety.

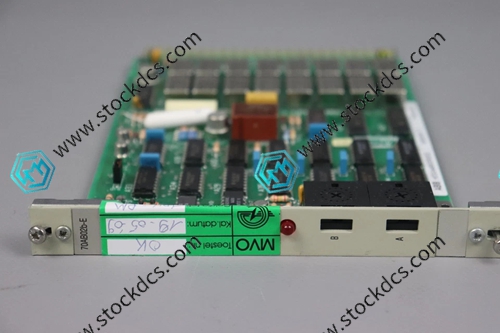

HESG446933R0002 70AB02B-E Product imag

HESG446933R0002 70AB02B-E ontroller Module
