EDS461-D-1 Insulation Fault Evaluator

EDS461-D-1 Insulation Fault Evaluator

Product Details Introduction

EDS461-D-1 Insulation Fault Evaluator Product Features

1. Precise insulation monitoring: Real time monitoring of the overall insulation resistance and leakage capacitance of the IT power supply system, supporting three-phase and single-phase AC systems below 400V, with high measurement accuracy and stable data.

2. Branch fault location: It can be connected to multiple low-frequency current sensors to accurately identify the fault location current of each branch, quickly lock the source of the fault, and avoid blind troubleshooting.

3. Multi level warning protection: supports custom warning, alarm threshold and response delay, can set 1-10 measurement filtering times, effectively avoiding false alarms in scenarios such as frequency converter startup.

4. Rich communication compatibility: equipped with RS-485 interface, supporting ModBus RTU communication protocol, can be connected to the upper computer for centralized control and remote data transmission.

5. Visual operation interface: Equipped with a backlit LCD screen, it intuitively displays information such as insulation resistance, operating status, and fault branches, and supports manual reset and quick parameter setting.

6. Flexible networking expansion: Up to 16 fault locators can be paired (customizable) to adapt to complex scenarios with multiple branches and meet the monitoring needs of large-scale systems.

7. Reliable fault record: It can store thousands of alarm records and 7-day insulation resistance history curves, support data backtracking analysis, and provide a basis for operation and maintenance optimization.

8. Industrial grade installation adaptation: Adopting standard DIN rail installation, the wiring terminals are neat and firm, with a protection level of IP20, suitable for control cabinet integration scenarios.

9. Tolerant to harsh environments: It can operate stably in complex electromagnetic interference, temperature and humidity fluctuations, and is compatible with critical scenarios such as medical, chemical, and data centers.

10. Independent alarm output: Equipped with two sets of independent alarm relays, supporting N/O/N/C optional contact modes, and can be linked with peripherals to achieve emergency response to faults.

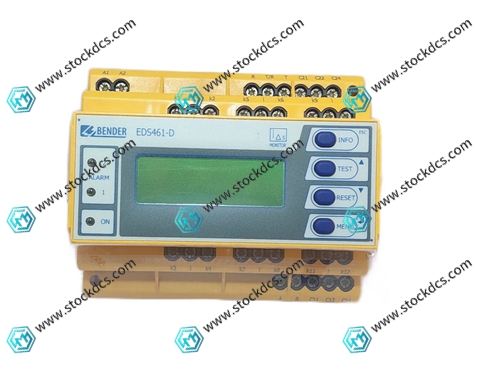

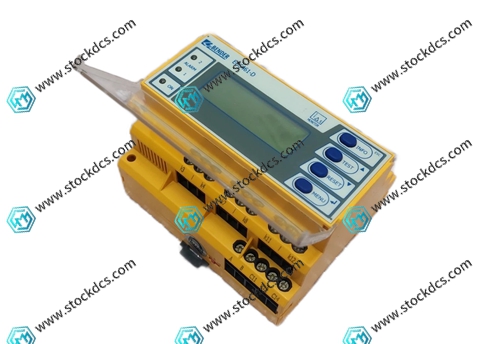

EDS461-D-1 Product imag
