4269-02-160000 Printed Circuit Board

Product Details Introduction

4269-02-160000 Printed Circuit Board Product Features

-Using high-quality FR4 substrate, Tg value ≥ 140 ℃, excellent heat resistance and mechanical bearing capacity

-Compliant with IPC-A-600G Class 2 industrial standards, ensuring consistency and reliability in mass production

-Support RoHS environmental regulations, lead-free design, and adapt to green industrial production needs

-The minimum line width/spacing can reach 0.1mm, with high wiring density, suitable for precision component layout

-Adopting lead-free tin spraying surface treatment, stable soldering performance and strong oxidation resistance

-The minimum finished aperture is 0.2mm, supporting high-precision drilling technology and suitable for small surface mount components

-Insulation resistance ≥ 1000M Ω, excellent withstand voltage performance, strong electrical stability

-The working temperature range is -40~85 ℃, suitable for harsh industrial temperature zones, and has strong resistance to temperature changes

-Excellent dimensional stability, low deformation rate in high temperature and high humidity environments

-Support blind buried hole technology, which can achieve complex circuit integration and save board space

-Green solder mask+clear silk screen design, clear component identification, easy to maintain and repair in the later stage

-After full electrical performance inspection and appearance inspection, there are no quality defects such as open circuit or short circuit

-Compatible with mainstream design software formats such as Protel and Altium, and compatible with conventional PCB design processes

-Can support soldering of high-density packaging components such as BGA, meeting the requirements of high integration circuits

-Using flame-retardant substrate and solder resist, in compliance with UL 94V-0 flame retardant standard, with high safety performance

-Adopting industrial grade driver chip solution, stable and reliable operation, suitable for complex industrial motion control scenarios

-Supports a wide voltage input range, adapts to various industrial power supplies, and has strong versatility

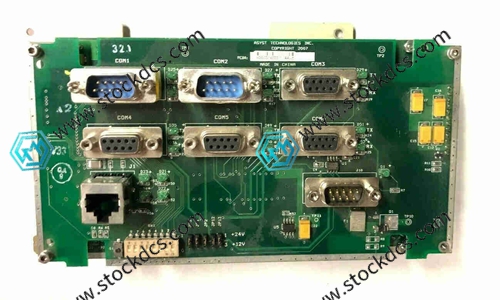

4269-02-160000 Product imag

4269-02-160000 ontroller Module
