810-801237-500 stepper driver module

810-801237-500 stepper driver module

Product Details Introduction

810-801237-500 Stepper Driver Module Product Features

-Adopting 32-bit DSP core control technology, stable driving performance, suitable for high-precision motion control scenarios

-Supports DC20-35V wide voltage input, compatible with various industrial power supplies, and has strong versatility

-Equipped with 16 levels of adjustable subdivision function, the highest subdivision can reach 60000 steps/turn, and the positioning accuracy is excellent

-Integrated enhanced subdivision technology can automatically smooth the motion trajectory and solve the problem of low-speed jitter in low subdivision

-Supports 4-speed drive current regulation (3.7A-7.8A effective value), compatible with various three-phase hybrid stepper motors ranging from 42-86mm

-The signal port adopts optoelectronic isolation design, with overcurrent protection, and can directly receive 3.3V-12V pulse signals

-Pulse input frequency can reach up to 1MHz, balancing high subdivision and high-speed operation characteristics

-Built in overcurrent, overvoltage, overheating, and phase to phase short circuit protection mechanisms ensure the safe operation of equipment

-Equipped with automatic half current function, it automatically halves the current when there is no pulse signal, reducing power consumption and heat generation

-Support power-off phase retention function, which can accurately maintain the original position of the motor when powered on next time

-Adopting aluminum shell heat dissipation design, high heat dissipation efficiency, suitable for long-term high load operation

-Compatible with differential, common anode, and common cathode interface connections, flexible wiring without the need for external current limiting resistors

-Compact and lightweight in size, only half the size of similar products, making it easy to install and integrate in small spaces

-Support debugging software parameter tuning and saving, coupled with on-site debugger to quickly complete system debugging

-The motor only requires UVW three wire connection, with simple wiring, easy installation and debugging, and is suitable for the integration needs of automation equipment

-Supports 90-264V AC wide voltage input, suitable for power grids in different regions around the world, with strong versatility

-Adopting efficient conversion circuit design, energy conversion efficiency ≥ 85%, in compliance with energy efficiency level VI standard

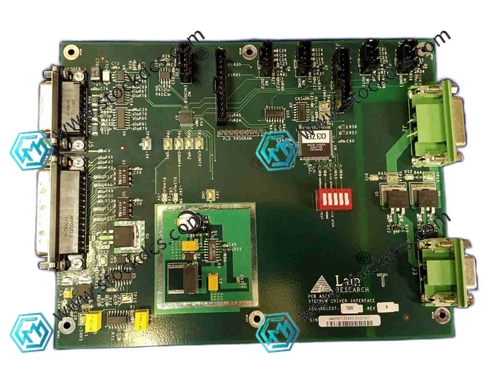

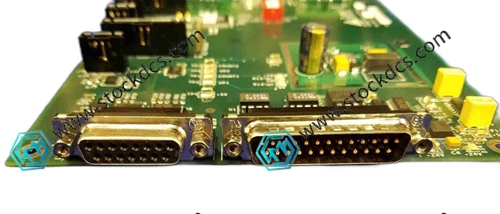

810-801237-500 Product imag
