Product Details Introduction

1. Adaptation scenarios and functions (41515 700102-00-06)

Device adaptation: Match with Extreme Networks high-end modular switches (such as Summit X series, ExtremeSwitching series) as core port expansion modules, suitable for high-density access scenarios in data centers and enterprise backbone networks, and can be directly embedded in switch slots to achieve port expansion.

Network compatibility: Focusing on high-speed Ethernet transmission scenarios, compatible with the IEEE 802.3 series standards, supporting gigabit/ten gigabit rate adaptation, compatible with IPv4/IPv6 dual stack network environments, and can seamlessly integrate with existing network architectures without the need to adjust core routing configurations.

Core function: Provide multi port data forwarding and link aggregation capabilities, undertake high-speed data exchange between server clusters and storage area networks (SANs), cooperate with switch control systems to achieve traffic load balancing and link redundancy protection, and ensure network transmission continuity.

2. Accuracy and Performance (41515 700102-00-06)

Port performance: Designed with SFP/SFP+optical module interface, the single port transmission rate can reach 1Gbps/10Gbps, supporting full duplex mode, and the total port bandwidth is ≥ 40Gbps, meeting the requirements of high-density data concurrent transmission.

Forwarding performance: Packet forwarding rate ≥ 14.88Mpps (gigabit port)/148.8Mpps (ten gigabit port), transmission delay ≤ 5 μ s, supports store forward switching mode, can accurately filter invalid frames, and avoid network bandwidth waste.

Protocol compatibility: Supports IEEE 802.3ad Link Aggregation (LACP), 802.1Q VLAN partitioning, 802.1p priority queue, compatible with Spanning Tree Protocol (STP) and Fast Spanning Tree Protocol (RSTP), ensuring network architecture stability.

3. Structure and Protection (41515 700102-00-06)

Protection design: The shell is made of industrial grade metal material and has electromagnetic shielding (EMC) design. It has passed EN 55032 Class B electromagnetic compatibility testing and can resist complex electromagnetic environment interference in data centers; The interface contacts adopt gold plating technology to reduce signal attenuation and oxidation loss.

Installation adaptation: Adopting standard modular design (size adaptation switch slot specification), supporting hot plugging function, no need to turn off the switch power during installation, single module replacement time ≤ 2 minutes, suitable for non-stop maintenance needs of data centers.

Easy to operate: equipped with port status indicator lights (Link/ACT, Speed), which can intuitively determine the link connection and transmission rate status; Support remote monitoring of module operation parameters through the Extreme Management Center (XMC) platform to achieve online firmware upgrades.

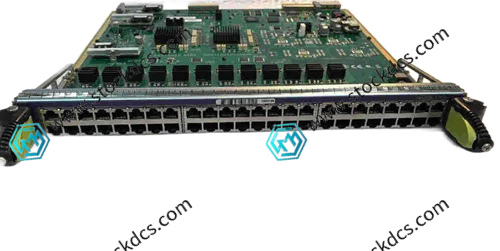

Extreme Networks  41515 700102-00-06 Product imag
