BERGER LAHR TLC411F Stepper Motor Control Driver

BERGER LAHR TLC411F Stepper Motor Control Driver

Product Details Introduction

product name

BERGER LAHR TLC411F Stepper Motor Control Driver

1、 Product Overview

TLC411F is a universal stepper motor driver launched by BERGER LAHR (now a brand under Schneider Electric), designed for precision motion control systems. It can drive two-phase or hybrid stepper motors and is widely used in fields such as automation, machine tool control, precision conveying, semiconductor equipment, and industrial detection systems, providing precise position control and efficient torque output.

2、 Technical parameters

Input power supply:

Voltage: Approximately 115/230 VAC (optional)

Frequency: 50/60 Hz

Output current:

Maximum phase current: adjustable, generally ranging from 1A to 4.5A

Current control method: constant current PWM modulation

Applicable motor types:

Two phase or hybrid stepper motor

Step control:

Supports full step, half step, and micro step (typical values 1/2, 1/4, 1/8)

The step resolution setting is flexible and can be set through dialing or software

Interface type:

Input: Pulse (STEP), Direction (DIR) signal interface

Control logic: TTL/differential signal compatible

Equipped with alarm output, enable signal, fault diagnosis interface, etc

Protection function:

Overvoltage, overcurrent, overheating, short circuit protection

Fault LED indicator for easy troubleshooting

Installation method:

Standard DIN rail or screw installation

Cooling method:

Air cooling or natural convection, depending on the installation environment

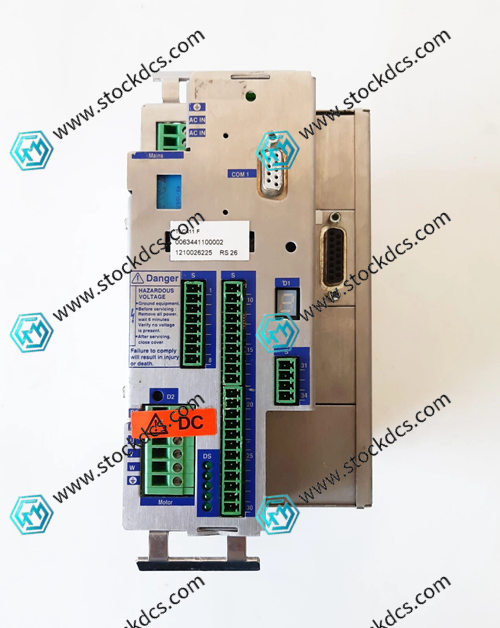

Product imag
