GE DS3800HMPK1K1K Controller Module
Product Details Introduction
product name
GE DS3800HMPK1K1K Controller Module
1、 Product Overview
DS3800HMPK1K1K is a controller module in the Mark IV series control system of General Electric (GE). This module is widely used in GE's turbine control systems (such as gas turbine or steam turbine control) to achieve precise monitoring, control, and data processing functions. This model mainly serves as one of the main processing modules, integrating microprocessor, memory, and data communication functions, used to perform critical control tasks in the control system.
2、 Technical parameters
Product Series: GE Speedtronic Mark IV
Module Number: DS3800HMPK1K1K
Function type: Main control processor module (Microprocessor Board)
Interface features:
Multiple pin banks
Match GE Backplane bus connection
Support on-site data collection and execution of logical instructions
Chip configuration: Integrated high-performance microprocessor (Motorola or Intel series)
Memory support: onboard static RAM and EPROM chips for firmware loading and data caching
Diagnostic function: with fault self check (LED status indication)
Size specification: Standard 6U plug-in board size, suitable for GE control system rack

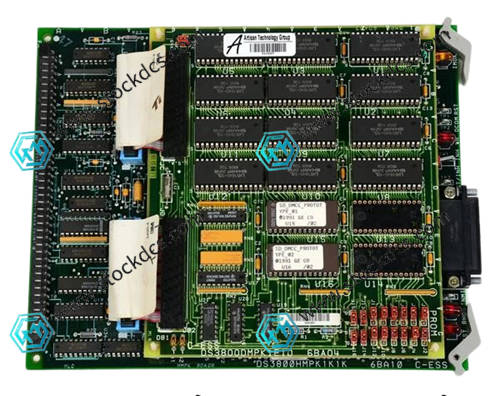

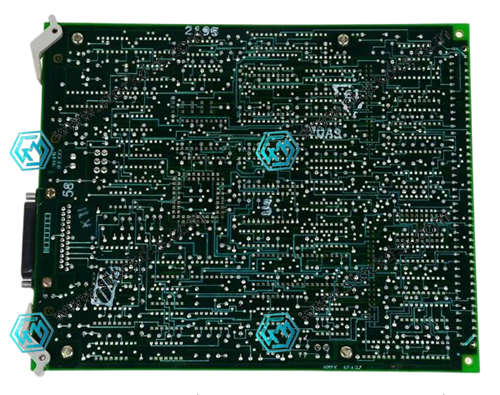

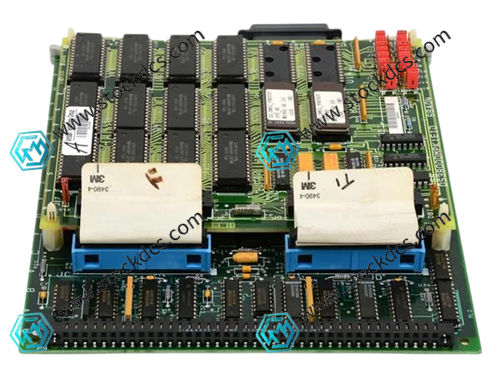

Product imag
