Gasonics 90-1061 Printed Circuit Board

Gasonics 90-1061 Printed Circuit Board

Product Details Introduction

product overview

Gasonics 90-1061 is a specialized printed circuit board for plasma cleaning equipment, which is a critical control or interface module within the system. This board is mainly used for controlling system signal transmission, data exchange between internal submodules of equipment, or for managing subsystems such as plasma sources, power modules, vacuum systems, etc.

Technical parameters (typical configuration)

Type: Multilayer Printed Circuit Board

Function: Signal processing, power control, equipment status communication

Installation method: slot or screw fixed installation in the main control rack

Adaptation equipment: mainly used for Gasonics Aura series plasma cleaning equipment

Signal interface: may include analog input, digital I/O, communication interface (such as RS-232 or TTL)

Size specifications: customized according to equipment, non universal standard size

Application scenarios

Internal Control of Gasonics Aura Equipment

Used to coordinate the operation of various sub modules, including key components such as RF generators, vacuum pumps, solenoid valves, etc.

Signal interface and device interconnection

Provide electrical connections and protocol conversion functions between devices and external systems to ensure stable and reliable system operation.

Replacement/repair purpose

As an original maintenance component, it can be used for equipment maintenance, replacement, or troubleshooting to restore normal equipment operation.

Product advantages

High stability: Designed for industrial applications, it can operate reliably in harsh environments such as high temperature and low pressure

Strong compatibility: Designed to match the system structure of Gasonics plasma equipment, easy to maintain

Circuit optimization: Integrated anti-interference design to improve the accuracy of signal transmission

Easy to maintain: modular plug-in structure, supports quick replacement, reduces equipment downtime

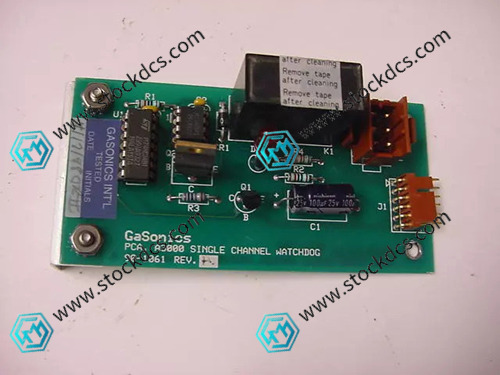

Product imag
