TRICONEX 3805E Analog Output Module

 TRICONEX  3805E Analog Output Module

Product Details Introduction

High precision analog output: Each output has an accuracy of ± 0.1%, supports 4-20mA/0-10V standard analog signals, and can accurately control valve opening, motor speed, etc., meeting the precision control needs of chemical, nuclear and other industries.

Multi channel independent control: integrates 8 independent analog output channels, each of which can be individually configured with parameters without sharing resources. It can simultaneously drive multiple actuators and adapt to multi device collaborative control scenarios.

Triple redundancy ensures safety: using TMR architecture, three channels output synchronously and calibrate each other, and a single channel failure does not affect signal stability. It meets SIL 3 safety standards and can be used with confidence in high-risk environments.

Fast signal response: The output signal switching delay is as low as 5ms, and after parameter adjustment, it can quickly feedback to the execution end, which is 30% faster than the response of ordinary modules. It is suitable for control scenarios with high timeliness requirements.

Self protective function: Each circuit is equipped with overcurrent and short-circuit protection, without the need for external protective components. In case of a fault, the output of the circuit will be automatically cut off to avoid damaging the equipment and reduce maintenance costs.

Strong anti-interference ability: The signal channel is isolated from the backplane at 1500V DC, which can resist electromagnetic radiation and power grid fluctuations. In a workshop with dense frequency converters, the output signal fluctuation is still less than ± 0.05%.

Wide temperature environment adaptation: The working temperature covers -40 ℃ to 70 ℃, and the circuit board is coated with moisture-proof material. It can operate stably even in high humidity and dusty environments without the need for additional temperature control or dust prevention equipment.

Support online maintenance: It can be plugged and unplugged with power, and modules can be replaced or output parameters can be calibrated during system operation without stopping the line. The maintenance process does not affect production and improves equipment utilization.

Flexible docking system: seamlessly compatible with TRICONEX TMR safety control system, supporting Modbus TCP protocol, easy to connect with PLC and monitoring platform, without extensive program modification.

High durability design: The casing is made of corrosion-resistant metal material, and key components are selected from industrial grade products. The average time between failures exceeds 150000 hours, making it suitable for long-term continuous operation scenarios.

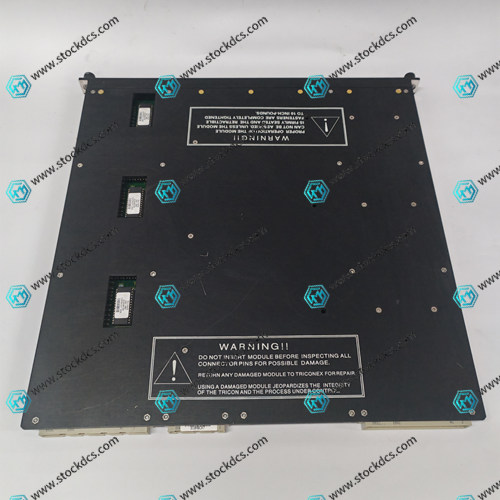

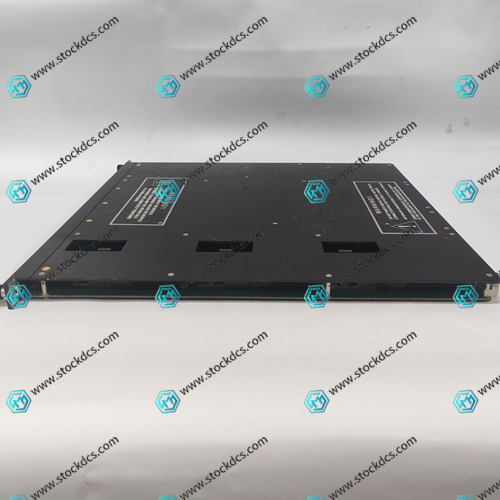

 TRICONEX 3805E Product imag
