TRICONEX 3008 main processor module

 TRICONEX 3008 main processor module

Product Details Introduction

Triple Redundancy Control Architecture: The main processor module of the TRICONEX 3008 adopts the brand's iconic Triple Modular Redundancy (TMR) design, integrating three independent CPU cores for synchronous computation and cross checking of data. It can automatically shield single point faults, ensuring that control instructions for safety critical scenarios such as petrochemicals and nuclear power are error free and comply with the IEC 61508 SIL 3 safety standard.

High performance computing processing: Equipped with an industrial grade high-speed processor, the instruction execution speed reaches 100 MIPS, and can simultaneously process 1000+I/O signals and 200+control logic circuits. It supports complex ladder diagram and functional block diagram (FBD) programming, and is suitable for the multi device collaborative control requirements of large production lines.

Wide range system compatibility: Seamless compatibility with TRICONEX 3000 series digital I/O modules, analog modules, and communication modules, supporting module plug and play through backplane bus, without the need for additional compatibility plugins, allowing for quick construction of a complete safety control system.

Multiple security protection mechanisms: built-in program verification, memory self-test, clock synchronization monitoring functions. When program abnormalities, memory errors, or clock deviations are detected, redundant switching can be immediately triggered to ensure uninterrupted system operation; Simultaneously supporting emergency stop (ESD) signal priority processing, with a response time of less than 10ms

High speed data communication capability: Equipped with dual Ethernet interfaces (supporting 10/100Mbps adaptive) and RS485 backup interfaces, it can simultaneously connect to engineer stations, operator stations, and third-party monitoring systems to achieve real-time transmission of control data and status information. The communication delay is as low as 5ms, ensuring synchronization between the monitoring screen and the on-site status.

Large capacity program storage: Equipped with 128MB Flash memory and 64MB RAM, it can store over 100000 lines of control programs and more than 1 year of historical fault data. It supports segmented storage and incremental download of programs, avoiding system downtime caused by program updates and improving maintenance efficiency.

Online maintenance and diagnosis: supports live plug and unplug (hot plug) function, which can replace modules or upgrade firmware while the system is running; Integrated LED status indicator lights and LCD small display screen can intuitively display CPU operating status, communication link status, and fault codes, reducing fault location time to minutes.

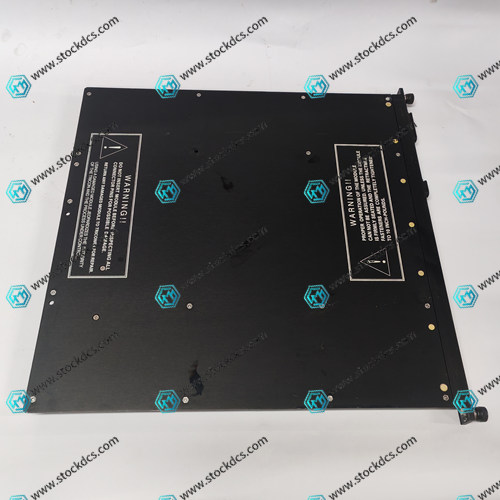

 TRICONEX 3008 Product imag
