GIDINGS&LEWIS 502-02815-01 Encoder Module

GIDINGS&LEWIS 502-02815-01 Encoder Module

Product Details Introduction

GIDINGS&LEWIS 502-02815-01 Encoder Module

Product Overview

The Giddings&Lewis 502-02815-01 encoder module is a feedback signal processing module used in CNC machine tools and automation systems. It is mainly used to receive the position signal or speed signal output by the rotary encoder sensor, and convert it into a standard signal recognizable by the numerical control system or servo controller, achieving precise positioning and speed control of the machine tool axis.

Technical Features

High precision signal analysis: Processing incremental or absolute position signals from rotary encoders to ensure accurate feedback.

Closed loop control support: In conjunction with servo drives or execution control boards, achieve high-speed and high-precision closed-loop control.

Multi channel support: Multiple encoders can be connected simultaneously to achieve multi axis monitoring.

Modular design: easy to install, replace, and expand the system.

Industrial environment adaptability: anti-interference, vibration resistant, suitable for heavy-duty machine tool environments.

Application field

CNC boring and milling machines

Provide precise position and speed feedback for axes such as spindle, worktable, and tool holder to achieve high-precision machining.

Vertical lathe and milling composite center

Coordinate multi axis actions to achieve complex part machining and multi process linkage.

Automatic production line

Used for precise position monitoring of robotic arms or multi axis execution units to ensure action synchronization.

Machine tool transformation and upgrading

In the numerical control transformation of old equipment, providing encoder signal interfaces to improve motion control accuracy.

Robots and precision mechanical equipment

Support motion feedback for high-precision robotic arms, automated assembly, or precision machining equipment.

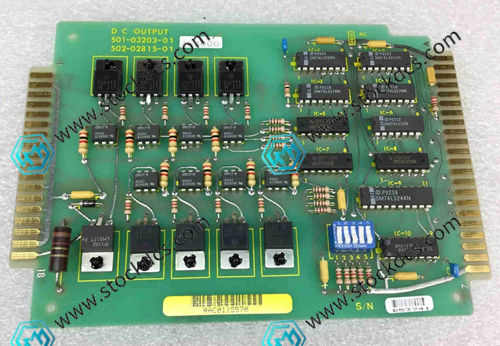

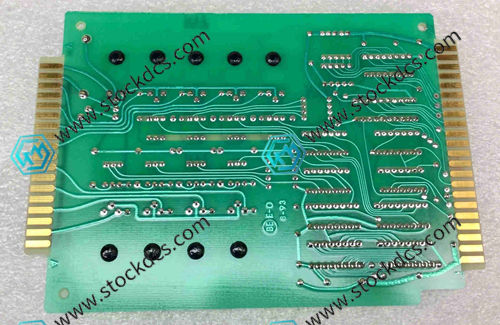

Product imag
