GIDINGS&LEWIS 502-02819-00 Digital Control Board

GIDINGS&LEWIS 502-02819-00 Digital Control Board

Product Details Introduction

GIDINGS&LEWIS 502-02819-00 Digital Control Board

Product Overview

The Giddings&Lewis 502-02819-00 digital control board is a core control module used in CNC machine tools and automation systems. It is mainly responsible for receiving digital instructions from the CNC system or CPU board, and converting them into digital control signals that can be recognized by various execution units and servo drives. It is an important module for achieving precision motion control and multi axis coordinated machining.

Technical Features

Digital signal processing: high-precision parsing of digital motion instructions from CPUs or controllers.

Multi axis control capability: capable of managing multiple servo axes simultaneously, achieving complex linkage machining.

Real time response: low latency signal processing to meet high-speed machining requirements.

Modular design: can be directly installed on the control rack for easy maintenance and replacement.

Industrial environment adaptability: anti-interference, vibration resistance, high temperature resistance, suitable for heavy-duty machine tool environments.

Application field

CNC boring and milling machines

Manage multi axis movements such as spindle, worktable, and tool holder to achieve high-precision machining and position control.

Vertical lathe and milling composite machine tool

Coordinate multi axis motion to achieve multi process machining of complex parts.

Automatic production line

Used to control the servo motors and actuators of the production line, achieving synchronization of actions between equipment.

Machine tool upgrade and renovation

In the numerical control transformation of old equipment, as the core module of digital control, it improves system accuracy and reliability.

Robots and precision mechanical equipment

Provide precise digital control signals to support high-precision robotic arms or precise motion control.

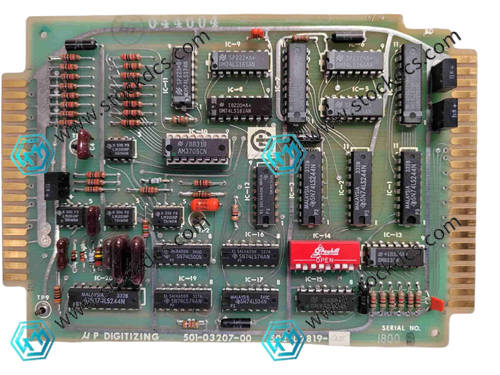

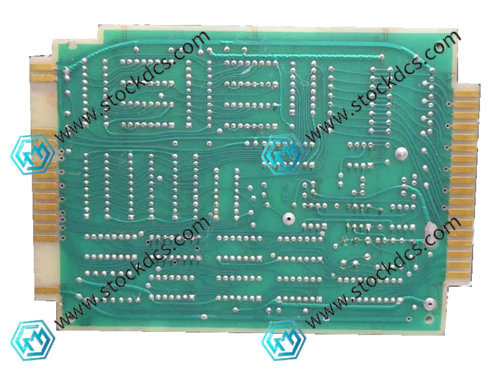

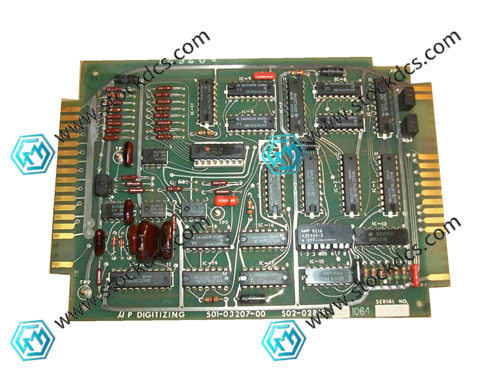

Product imag
