HUTTINGER MAPKST0017 High Frequency Power Amplifier

Product Overview

Huttinger MAPKST0017 is an industrial grade high-frequency RF power amplifier mainly used in semiconductor manufacturing, vacuum plasma technology, and scientific research fields. Its core design is high-power output and high-frequency stability, which can provide continuous and accurate RF energy under harsh process conditions.

Model: MAPKST0017

Type: High frequency power amplifier (RF Amplifier)

Output power: approximately 1 kW

Operating frequency: 13.56 MHz

Front stage amplifier tube: MRF150

Power transistor: Dual MAPKST0017 transistor

Heat dissipation method: water-cooled heat dissipation, using copper block structure to improve thermal conductivity efficiency

Technical Features

High power output: With a 1 kW level RF output, it meets the high energy requirements of plasma processes.

High frequency accuracy: Stable operation in the 13.56 MHz industrial standard frequency band, suitable for processes such as thin film deposition and plasma etching.

Efficient heat dissipation: Adopting a water-cooled heat dissipation solution to ensure stability in long-term high-power working environments.

Modular design: The combination of front-end and back-end amplifiers enhances signal gain efficiency and reliability.

Strong industrial applicability: sturdy structure, suitable for continuous production process equipment.

Application field

Semiconductor Manufacturing

Used for vacuum processes such as plasma etching, ion implantation, PVD/CVD, etc.

Photovoltaic and Display Panel

Provide thin film deposition energy in the production of solar cells, OLED, and LCD panels.

vacuum coating

High precision surface treatment applied to optical components and tool coatings.

Industrial Heating

Provide stable power in high-frequency induction heating and material surface modification processes.

Research and experimentation

Used for materials science and RF process research, providing high-frequency energy support.

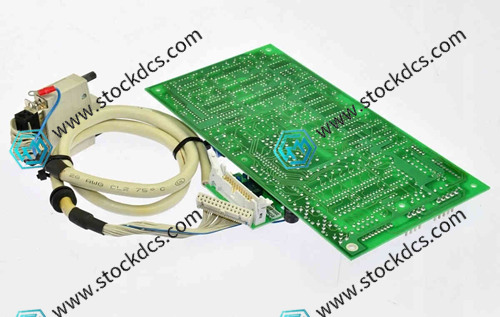

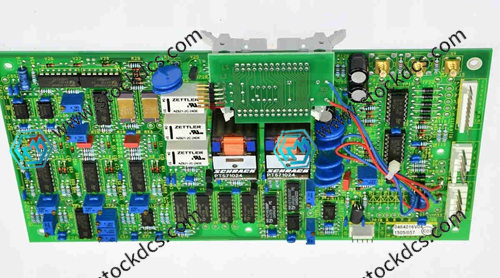

Product imag
