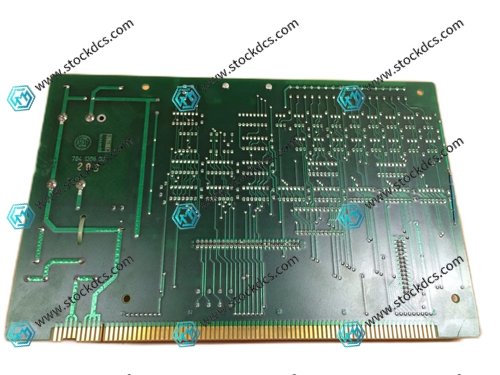

BOBST 70419203 (compatible with S-2000/S-2100) main control interface circuit board

BOBST 70419203 is the main control hub board for the S2000 and S920 series high-speed paste box/automatic die-cutting machines, which coordinates the communication of the entire machine bus and the interaction of IO signals at all workstations.

1. Multiple sets of bus terminals, connected to signal links of 701/704 series IO boards, driver boards, and detection boards

2. 70419203 is equipped with full channel optoelectronic isolation to block workshop frequency conversion harmonics and grid interference

3. Three proof protective coating for the entire PCB board, resistant to ink dust and workshop moisture condensation erosion

4. Gold plated finger card slot, the device is not prone to contact oxidation and virtual disconnection under high-speed vibration conditions

5. Integrated multi-level protection against overvoltage, overcurrent, and surge, with a main control chip for backend line fault protection

6. Layered wiring with strong and weak electrical zoning significantly reduces the impact of electromagnetic crosstalk on communication stability within the board

7. Original industrial grade main control components, with a wide temperature range of -20 ℃~70 ℃ for continuous production and stable operation

8. Partition power and bus fault indicator lights, quickly locate communication interruptions and point anomalies

9. Standard rack card specification, in-situ plug and replace, no need to modify the original wiring of the equipment

10. Each bus channel has an independent circuit, and a single circuit board failure will not cause the entire system to shut down

11. Large capacity onboard storage chip, storing machine formula, operating parameters, and overall program

12. Thickened fiberglass substrate, resistant to equipment start stop impact and long-term mechanical vibration deformation

13. Optimize the power consumption circuit of the main control, and control the temperature rise during long-term operation at full load within a reasonable range

14. BOBST factory exclusive bus protocol, fully compatible with all S-2000 and S-2100 series electronic control modules

15. 70419203 exclusive adaptation to Bosch S2000, S920 fully automatic box pasting and die-cutting equipment

Conclusion: 70419203 serves as the control center for the entire machine, coordinating the electronic control actions of paper feeding, box folding, waste cleaning, and detection throughout the entire process.
