Motorola MVME332PA1 Port Module

Product Overview

Motorola MVME332PA1 is a VMEbus architecture port module used in the MVME332 series of single board computer systems, mainly providing high-speed data interfaces and port management functions. This module can expand the communication capability of the CPU module, achieve multi-channel I/O port management, support industrial automation, testing and measurement, data acquisition, and high-speed data transmission in embedded systems. MVME332PA1 can work in conjunction with MVME332 series CPU modules and other VME expansion boards to achieve efficient connection between the system bus and peripheral devices.

Technical Specifications

Bus interface: VMEbus standard, supports 16/32-bit data transmission

Port type:

Serial port (RS-232/RS-422/RS-485, optional)

Parallel data port

Data rate: Supports high-speed data transmission, up to 1 Mbps or more depending on the interface type (serial)

Control function:

Data buffering and transmission management

Interruption and status monitoring

Synchronize communication with CPU module

Compatibility: Compatible with MVME332 series CPU modules and other VME expansion boards

Work environment: Industrial grade design, strong anti-interference ability, suitable for long-term continuous operation

Application scenarios

Industrial automation system

Provide multi-channel data interfaces for controllers to achieve device monitoring and data exchange.

Testing and Measurement System

High speed data collection, management of experimental equipment and signal interfaces.

Communication and network equipment

Provide data interface extensions to achieve embedded switching and communication node control.

DCS

Multi module collaboration enables data synchronization and task distribution within the bus.

Research and Simulation System

Manage multiple signal inputs and outputs to ensure system data processing and real-time performance.

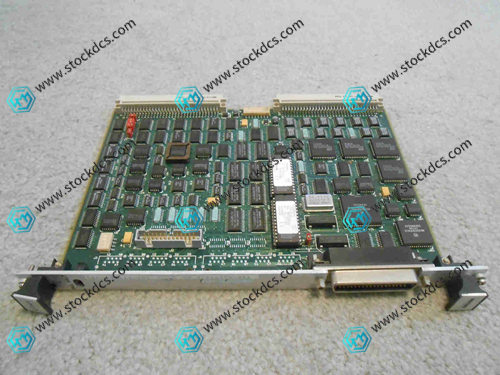

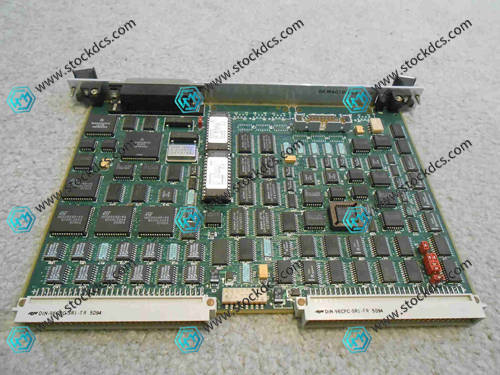

Motorola MVME332PA1 Port Module Product imag
