Motorola MVME162-222 Controller Module

Motorola  MVME162-222 Controller Module

Product Details Introduction

Product Overview

The Motorola MVME162-222 is a model of the MVME162 series VME bus single board computer (SBC), based on the Motorola 68k architecture processor, designed for embedded control and automation systems. This module integrates processors, memory, communication interfaces, and timing/interrupt logic, and can serve as the control core of VME systems, widely used in industrial control, telecommunications, transportation, and defense fields.

Technical parameters (refer to MVME162 series, 222 model configuration)

Processor: Motorola MC68040 or MC68LC040, with a clock frequency of approximately 25MHz.

Memory:

DRAM: 8MB~32MB (expandable)

Flash/EPROM: Used for firmware, bootloader, and operating system storage

Bus interface:

VMEbus standard interface (A16/A24/A32 address mode, D08/D16/D32 data transmission)

Support running as a system controller

I/O interface:

Serial port (RS-232/RS-422, configurable)

Parallel port (used for printers or other parallel peripherals)

Ethernet interface (optional for some configuration models)

Timer and watchdog circuit

Power supply: Powered by VME backplane (+5V/± 12V).

Operating system support: real-time operating systems such as VxWorks, pSOS, Lynx, etc.

Application scenarios

Industrial automation: as the core controller for PLC, CNC machine tools, and robot systems.

Telecommunications and network equipment: used for early switches, signal processing, and node control.

Traffic control: used as a logic and signal processing core in railway, subway, and aviation ground systems.

Military and Aerospace: Embedded computing units applied to command and control and weapon platforms.

Testing and Measurement System: Used in the instrumentation of the VME framework to perform data acquisition and processing.

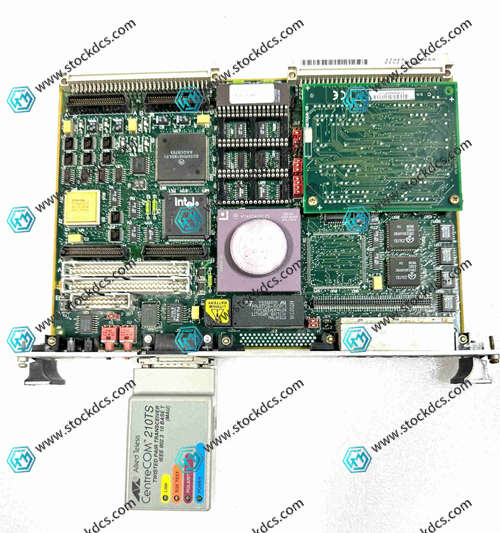

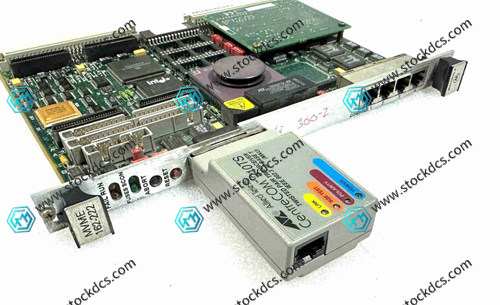

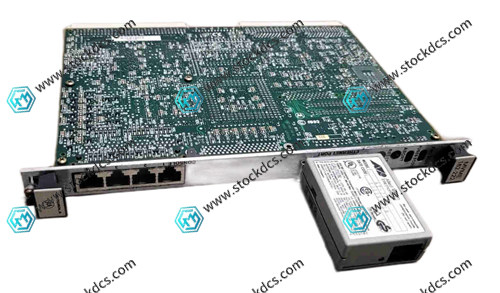

Motorola  MVME162-222 Controller Module Product imag
