Motorola MVME172PA-644SE Automation Control Module

Motorola  MVME172PA-644SE Automation Control Module

Product Details Introduction

Product Overview

The Motorola MVME172PA-644SE is a VME bus single board computer (SBC) designed specifically for automation control and embedded computing, based on the Motorola 68k series processors (MC68060/MC68040 optional). It belongs to the extended model of MVME172 series, integrating a processor, memory, and multiple communication interfaces, and can be used as the core control module of industrial control systems.

Technical parameters (typical features, refer to MVME172 series)

Processor: Motorola MC68060 (or some versions of MC68040), with a clock frequency of approximately 50MHz~66MHz.

Memory:

DRAM (supports 16MB~64MB, some versions can be expanded to higher capacity)

Flash/EPROM (for firmware and system startup)

Bus interface: Complies with the VMEbus standard and can operate as a system controller.

I/O interface:

Serial port (RS-232/RS-422, can be used for terminal, debugging, or device communication)

Ethernet interface (10Mbps)

SCSI interface (supporting external storage and peripheral devices)

Parallel port and timing/interrupt control interface

Power supply: Powered by the VME backplane (+5V/± 12V).

Operating system support: real-time operating systems such as VxWorks, Lynx OS, pSOS, etc.

Application scenarios

Industrial automation: as the main control unit for production lines, robots, and CNC equipment.

Telecommunications equipment: used as an embedded processing core in early switches and signal processing devices.

Traffic control: Logic and communication control in railway, subway signal and dispatch systems.

Military and Aerospace: Used for embedded command and control and data processing platforms.

Testing and Measurement System: As a data acquisition and operation control module for instrument equipment.

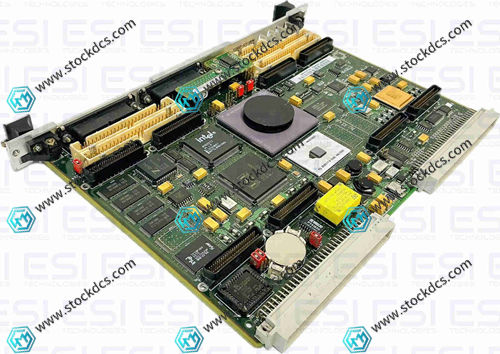

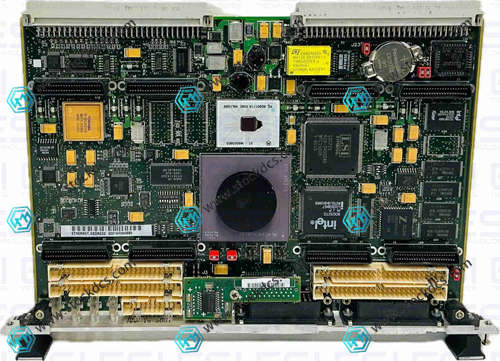

Motorola  MVME172PA-644SE Automation Control Module Product imag
