Motorola MVME147-024 Automation Control Module

Motorola MVME147-024 Automation Control Module

Product Details Introduction

1、 Product Overview

The Motorola MVME147-024 is a VMEbus single board computer based on the Motorola 68030 processor, belonging to the high-performance embedded control module of the MVME147 series. This module is widely used in industrial automation, embedded real-time control, testing and measurement systems. It can operate as an independent control unit or work together with other modules through the VME bus to build complex distributed control and data processing platforms.

2、 Technical parameters

Processor: Motorola 68030 CPU, with a maximum clock speed of 25 MHz

Coprocessor: Optional MC68882 mathematical coprocessor, used to accelerate floating-point operations

Memory:

DRAM: 4MB – 16MB (expandable)

EPROM/Flash：256KB – 2MB， Used for bootloader and firmware storage

NVRAM: with clock calendar, used for parameter and time maintenance

Bus interface: compliant with VMEbus standard, supporting A16/A24/A32 address space and D08/D16/D32 data transmission

I/O interface:

Serial interface (RS-232/RS-422, configurable)

Parallel I/O ports

Ethernet/LAN interface (supported by some models)

System functions:

Self checking and diagnostic functions

watchdog

Interrupt and Exception Handling Mechanism

3、 Application scenarios

industrial automation control

As the core control unit of PLC/DCS, it coordinates real-time control of robotic arms, sensors, and actuators.

Testing and Measurement System

Used for data acquisition and processing of laboratory and production line automation testing equipment.

Telecommunications and Network Equipment

As an embedded platform for communication protocol processing and signaling control.

Military and Aerospace Industry

Suitable for radar signal processing, guidance control, and task computation.

Embedded simulation system

Can serve as a central processing unit for simulators or training systems.

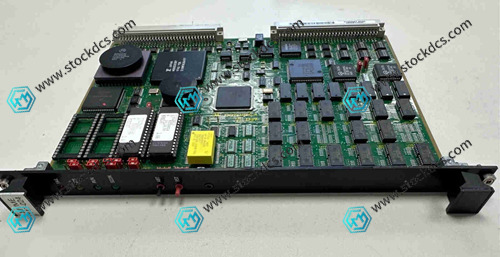

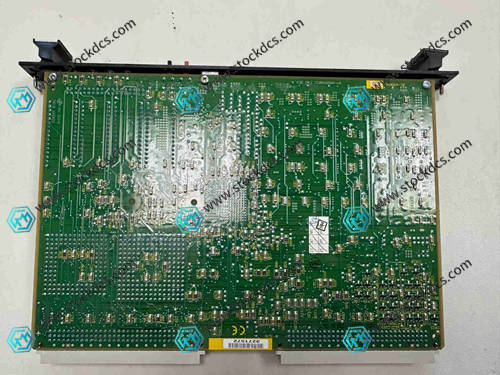

Motorola  MVME147-024 Automation Control Module Product imag
