Motorola MVME-332XT Bus Controller

Product Overview

Motorola MVME-332XT is a bus controller module based on the VMEbus architecture, belonging to the Motorola MVME series of embedded control and interface products. Its main function is to serve as a bus master/arbitration unit, responsible for data transmission control, bus arbitration, signal timing coordination, and system resource management in the VME system. This module typically works in conjunction with MVME CPU boards (such as the MVME-2300 series) and various I/O boards to build high-performance real-time control and data acquisition platforms.

Technical Specifications

Bus standard: Complies with the VMEbus specification (compatible with VME64), supports master and slave modes.

Functional positioning: Bus arbitration, data buffering, signal management, ensuring bus communication efficiency and stability.

Data transmission capability: Supports high-speed data read/write and burst transmission, suitable for applications with high real-time requirements.

Interface resources: Provides standard VMEbus signal interfaces, compatible with Motorola series CPU modules and peripherals.

Reliability design: Equipped with electrical isolation, anti-interference, and fault tolerance capabilities, suitable for industrial and defense environments.

System support: Compatible with multiple real-time operating systems (such as VxWorks, pSOS, Lynx OS, etc.).

Application scenarios

industrial control

Used in production line control systems to achieve multi module coordination and real-time data communication.

Energy and Electricity

As the main bus control unit in the monitoring system of substations and power plants, it ensures data acquisition and scheduling.

Defense and Aerospace

Applied to radar systems, task computing platforms, and flight control systems, achieving high reliability bus arbitration.

communication equipment

As the core bus manager in switches, communication base stations, and data routing platforms.

Research and Testing

Used for large-scale experimental equipment and automated testing systems to achieve high-speed communication and synchronization between modules.

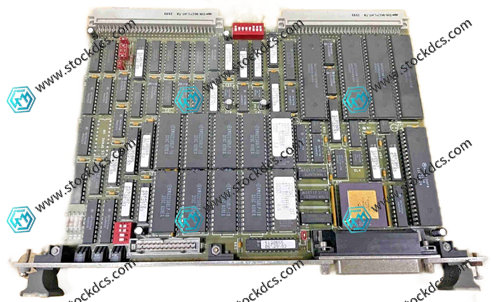

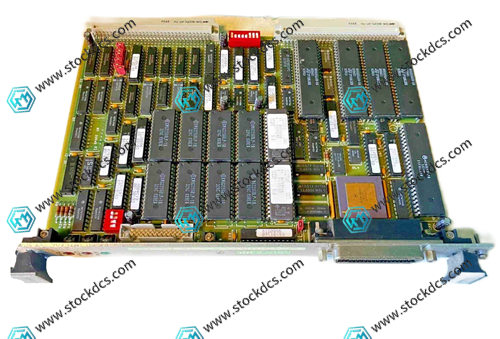

Motorola  MVME-332XT Bus Controller  Product imag
