GIDINGS&LEWIS 502-03061-02 processor module

GIDINGS&LEWIS 502-03061-02 processor module

Product Details Introduction

Product Overview

The Giddings&Lewis 502-03061-02 processor module is one of the core components of the PiC900 control system, serving as the central processing unit (CPU) of the system. It is responsible for executing user programs, coordinating data processing of input and output modules, implementing motion control logic and communication management, and is the "brain" of the entire control system.

Product application areas

Numerical Control Machine Tool (CNC)

Applied to equipment such as lathes, milling machines, grinders, machining centers, etc.

Provide multi axis synchronous control, position calculation, and real-time logic processing to ensure machining accuracy and efficiency.

Automatic production line

Control conveyor systems, sorting machinery, assembly lines, etc.

Cooperate with I/O modules, encoder modules, and DC/AC output boards to achieve action sequence control and real-time monitoring.

Motion control system

Drive servo motors and stepper motors to achieve multi axis linkage control.

Support high-performance motion functions such as interpolation, speed curve planning, acceleration and deceleration control.

Process control industry

Used for logical operations, signal processing, and data acquisition in industries such as metallurgy, petrochemicals, and power.

Can collaborate with analog modules to handle process variables such as pressure, temperature, and flow rate.

Robots and Intelligent Devices

Used for robot control systems, responsible for path planning and multi joint coordination.

Real time signal acquisition and feedback control are performed in automatic detection equipment.

Large scale industrial control system

As a central control unit, it collaborates with multiple I/O modules and expansion boards, making it suitable for medium to large complex control scenarios.

Connect with the upper computer and monitoring system through communication interfaces to form a complete automation solution.

Application advantages

High performance: Provides powerful instruction processing and real-time response capabilities.

Modularization: Flexible combination with PiC900 series I/O modules to adapt to different control scales.

Strong stability: Industrial grade design, stable and reliable long-term operation.

Good scalability: supports multitasking, communication expansion, and system upgrades.

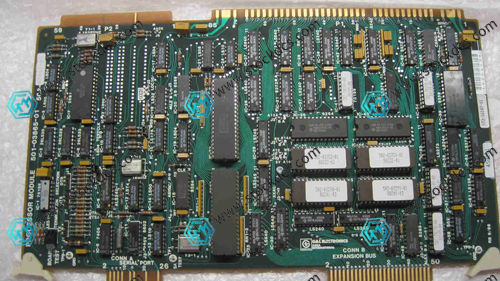

Product imag
