Product Details Introduction

1、 Equipment adaptation and expansion foundation

5520 Series Exclusive Adaptation: Extreme Networks 5520-VIM, as a dedicated expansion module for the 5520 series core switch, precisely matches the modular slot design of the switch and can be seamlessly installed on models such as 5520-48P and 5520-48X, providing a flexible interface upgrade path for fixed port switches and expanding functional boundaries without the need to replace the entire machine.

Hot swappable modular design: adopting a tool free hot swappable structure, operation and maintenance personnel can complete module installation, replacement, and maintenance without shutting down the switch. Combined with the redundant power supply and heat dissipation design of the switch, it achieves "zero interruption" expansion operation, ensuring the continuous operation of key businesses such as finance and government affairs.

2、 Port type and expansion capability

Multi rate optical port expansion: It is speculated to be equipped with 4-8 10G/25G SFP28 or 40G QSFP+optical ports, compatible with 1000BASE-X, 10GBASE-SR/LR, 25GBASE-SR and other multi specification optical modules. The transmission rate and distance can be flexibly selected according to the needs of the scene, and can adapt to different bandwidth scenarios such as core links in the park and interconnection of data center servers.

Flexible adaptation of "rate splitting": If equipped with QSFP+ports, it supports splitting into 4 10G ports through splitter modules (such as QSFP+to 4 × SFP+), achieving bandwidth splitting from "40G → 4 × 10G". A single module can balance high-speed uplink and multi device 10G access, greatly improving the utilization of port resources.

Hybrid port scenario coverage: Some models may integrate a hybrid configuration of gigabit electrical ports and ten gigabit optical ports, which not only meets the gigabit access needs of terminals such as PCs and IP phones, but also connects to core networks or storage devices through optical ports, adapting to the integrated "access aggregation" small and medium-sized network architecture.

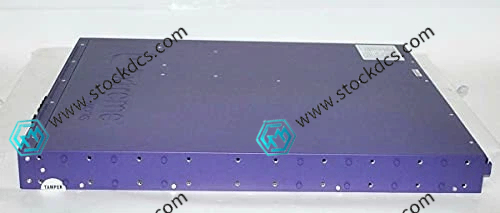

Extreme Networks 5520-VIM  Product imag
