AMAT Applied Materials 0100-11002 Digital IO Card

AMAT Applied Materials 0100-11002 Digital IO Card

Product Details Introduction

1. Interface configuration and adaptability (0100-11002 digital IO card)

Core interface: As a dedicated digital IO card, it is expected to be equipped with multiple sets of digital input/output channels (referring to the characteristics of the same series 0100-71304, or up to 16 channels or more), suitable for sensor signal acquisition and actuator control requirements in semiconductor devices

Adaptation equipment: specifically designed for AMAT semiconductor industrial control systems, compatible with precision machines such as 300mm deposition and etching, and can seamlessly interface with the main control unit of P5000 and Producer series platforms

Protocol compatibility: Supports industrial universal IO control protocols, referencing the characteristics of modules in the same series, can match PLC system signal logic, and achieve collaborative control with external devices such as equipment chambers and vacuum valves

2. Transmission performance and control capability (0100-11002 digital IO card)

Response speed: Designed with high-speed digital signal processing and referencing the standards for industrial control IO cards, the output response delay can be as low as milliseconds, meeting the real-time control requirements for wafer processing

Control function: Supports programmable level configuration (such as high and low level threshold adjustment), adapts to different peripheral signal specifications, and works with digital filtering function to reduce noise interference and ensure signal acquisition accuracy

Synchronization feature: It may have dual modes of external triggering and software triggering, and can work synchronously with devices such as RF generators and data acquisition modules, adapting to semiconductor multi process collaboration scenarios

3. Stability and Protection Design (0100-11002 Digital IO Card)

Anti interference performance: Adopting optoelectronic isolation technology (standard configuration for industrial IO cards), it blocks the impact of electromagnetic interference in semiconductor workshops on digital signals, avoiding false triggering or signal loss

Hardware protection: Built in overvoltage and overcurrent protection circuits, combined with anti-static design (ESD protection level or up to industrial level), resist external instantaneous impact, and protect the core circuit of the 0100-11002 card body

Status monitoring: Equipped with channel level LED indicator lights, it can display the real-time status of each IO port's on/off and signal, and with fault self diagnosis function, quickly locate abnormalities such as open circuits and short circuits

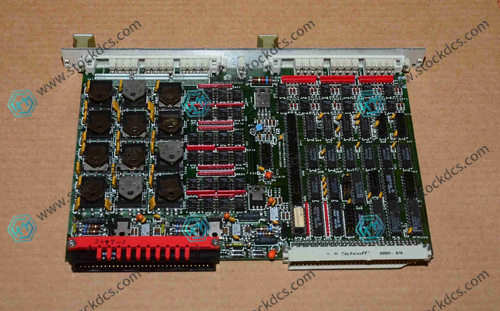

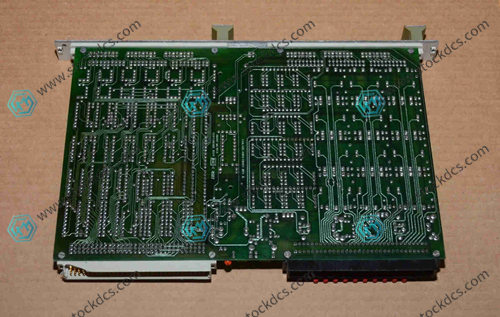

AMAT Applied Materials 0100-11002 Product imag
