Extreme Networks 220-24-10GE2 Network Switch

Extreme Networks  220-24-10GE2 Network Switch

Product Details Introduction

1、 Port configuration and expansion capability

High density gigabit access design: Extreme Networks 220-24-10GE2 is equipped with 24 10/100/1000Base-T electrical ports. As a non PoE model, it focuses on pure data access scenarios and can simultaneously connect 24 terminal devices such as PCs, servers, and wireless APs, adapting to the high-density access needs of enterprise office areas and data centers.

10 Gigabit Upstream Expansion Channel: The body is reserved with 2 10G Base-X SFP+optical ports, supporting 10 times the bandwidth of gigabit upstream links. It can efficiently connect core switches or storage devices and meet high-speed transmission scenarios such as high-definition video streaming and big data backup.

2、 Core performance and forwarding efficiency

Full port line speed forwarding capability: According to the port performance calculation formula, 24 gigabit ports theoretically require a forwarding rate of 35.71 Mpps. 220-24-10GE2 has a switching capacity of 96 Gbps and a forwarding rate of 71.4 Mpps, achieving line speed processing for all gigabit and ten gigabit ports to ensure unobstructed data transmission.

Layer 2 and 3 Fusion Forwarding Architecture: It has complete layer 2 features (VLAN, link aggregation, etc.), supports IPv4/IPv6 static routing and RIP dynamic routing protocols, and can flexibly divide network segments to meet the multi-layer network architecture needs of small and medium-sized enterprises.

3、 Reliability and redundancy design

Redundant power supply expansion support: Equipped with a fixed built-in AC power supply and reserved redundant power supply slots, it can be extended to access Extreme dedicated redundant power supply modules. Through a dual power parallel architecture, automatic fault switching is achieved to ensure continuous power supply for core scenarios such as financial systems and business platforms.

Stacking and Power Supply Collaborative Redundancy: Supports stacking multiple devices to form a virtual cluster, and each 220-24-10GE2 can independently expand redundant power supplies, building a distributed power supply guarantee system. In the event of a single power supply failure, the cluster can still maintain operation through other nodes, improving overall network availability.

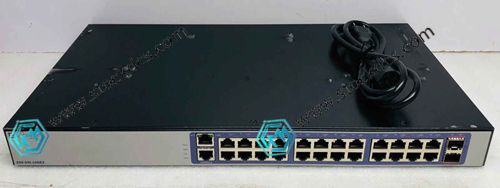

Extreme Networks 220-24-10GE2  Product imag
