AMAT Applied Materials 0120-00794 Process Sensor Motherboard

AMAT Applied Materials  0120-00794 Process Sensor Motherboard

Product Details Introduction

1. Signal acquisition performance (AMAT 0120-00794)

Integrate 8-16 sensor interfaces, support thermocouple (K/J type), RTD (platinum resistance), 4-20mA analog signal input, can synchronously collect process parameters such as temperature, pressure, flow rate, etc., 16 bit ADC conversion accuracy, measurement error ≤ ± 0.1% FS

Equipped with signal filtering and cold junction compensation functions, it can suppress electromagnetic interference in the workshop, with a temperature acquisition range of -200~1300 ℃, suitable for high-precision monitoring requirements of semiconductor etching and deposition processes.

2. Adaptation and linkage (AMAT 0120-00794)

Equipped with RS485/Modbus interface, it can directly interface with AMAT 0190-24007 single board computer and 20-000314-003 analog input module, upload and collect data in real time, and support remote calibration of sensor parameters.

Reserve 2 digital output interfaces, which can be linked to control valve, heater and other actuating components, forming a process parameter monitoring control loop and improving equipment automation.

3. Environment and Protection (AMAT 0120-00794)

Working temperature -20~+70 ℃, humidity 5% -95% (no condensation), protection level IP20, surface anti-static spraying, suitable for temperature and humidity fluctuations and dust control requirements in semiconductor clean workshops.

Adopting optoelectronic isolation technology (isolation voltage ≥ 2500V DC), anti electromagnetic interference complies with EN 55022 Class B, avoiding signal distortion caused by RF equipment interference.

4. Reliability (AMAT 0120-00794)

The core chip is selected from industrial grade models, which have undergone 100000 cycles of data collection and testing. The MTBF is ≥ 80000 hours and supports continuous operation for 7 × 24 hours, meeting the high utilization requirements of semiconductor factories.

Compliant with UL/CE/RoHS certification, the original factory provides a 1-3 year warranty, supports quick replacement of spare parts, and reduces equipment downtime caused by motherboard failures.

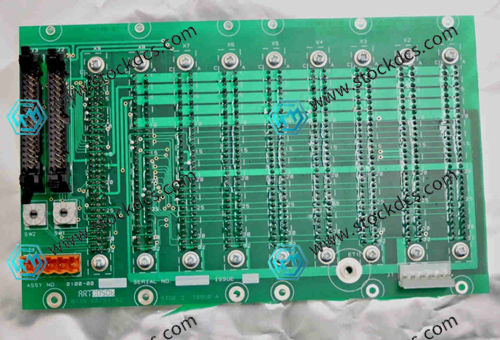

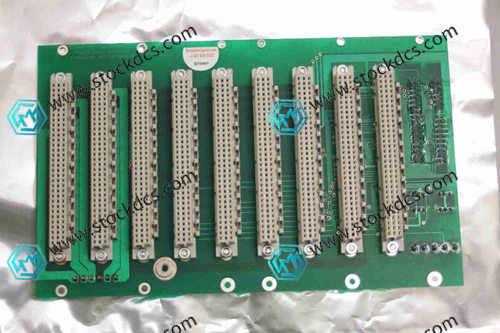

AMAT Applied Materials 0120-00794 Product imag
