AMAT Applied Materials 0190-01914 AC Distribution Box

AMAT Applied Materials 0190-01914 AC Distribution Box

Product Details Introduction

1、 Core distribution and control performance characteristics

Multi circuit precise power distribution capability

Specially designed for power supply of semiconductor equipment clusters, it integrates multiple independent output circuits (presumably supporting 8-16 single-phase/three-phase circuits), with input voltage adapted to industrial common 380V three-phase AC or 220V single-phase AC, and each output can accurately allocate 10A-63A rated current, covering equipment components with different power requirements such as single board computers, analog input modules, pneumatic control boards, etc. Adopting high-precision electromagnetic circuit breakers with breaking capacity of up to 10kA@400V It can quickly cut off overload or short-circuit currents, ensuring precise and controllable distribution links.

Intelligent monitoring and remote control functions

Equipped with industrial grade power monitoring modules and microcontrollers, it can collect real-time voltage, current, power factor, and energy consumption data for each circuit, with a measurement accuracy of ± 0.5% FS. It is equipped with one EtherNet/IP and one RS485 communication interface, supports Modbus TCP protocol, and can seamlessly integrate with 0190-24007 single board computers and factory energy management systems, achieving remote closing/opening control and energy consumption data upload, providing support for refined energy management in semiconductor factories.

Flexible distribution mode adaptation

Supports switching between two distribution modes: "dual primary and backup" and "single independent". Through an internal switch, millisecond level automatic switching between the primary and backup power sources can be achieved (switching time ≤ 50ms), ensuring Endura ®  Uninterrupted power supply for key equipment such as thin film deposition systems. Each circuit is equipped with an independent adjustment knob, which can customize the overcurrent protection threshold according to the load characteristics and adapt to the starting current requirements of different devices.

2、 Security protection and alarm characteristics

Full dimensional electrical safety protection

Integrate multiple safety protection mechanisms, including overload protection (110% rated current delayed tripping), short circuit protection (instantaneous tripping current ≥ 10In), leakage protection (residual current action value ≤ 30mA), and overvoltage/undervoltage protection (action threshold ± 15% rated voltage). The box is made of reinforced cold-rolled steel plate material with an IP40 protection level, which can effectively prevent dust and water droplets from entering. At the same time, reliable grounding (grounding resistance ≤ 4 Ω) is achieved through grounding terminals to prevent static electricity accumulation and electric shock risks.

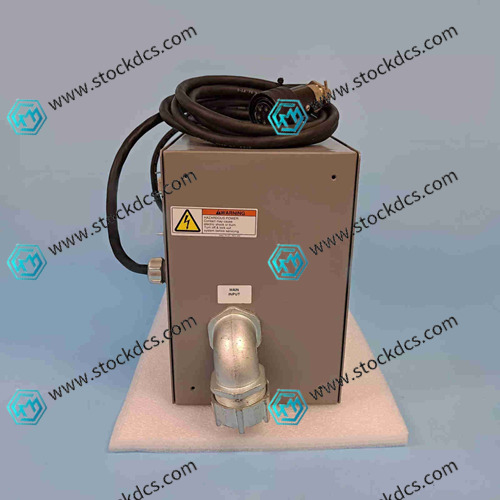

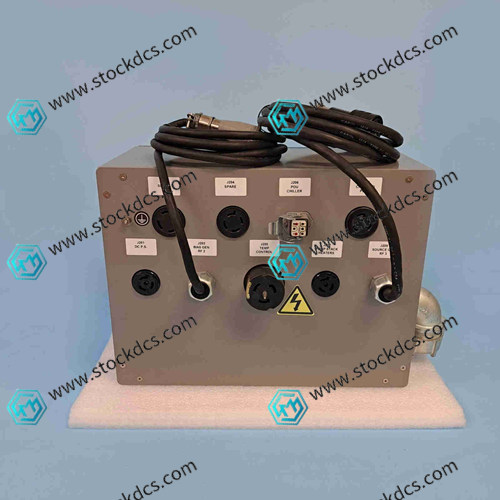

AMAT Applied Materials  0190-01914 Product imag
