AMAT Applied Materials 0100-90941 motherboard

AMAT Applied Materials 0100-90941 motherboard

Product Details Introduction

AMAT Applied Materials 0100-90941 motherboard

1、 Product Overview

AMAT 0100-90941 is a core control motherboard used by Applied Materials for semiconductor manufacturing equipment.

It is the brain of the device control system, responsible for managing and coordinating various modules, I/O signals, power distribution, communication interfaces, and process execution.

This motherboard is typically used in Endura, Centura, Producer, P5000 series semiconductor devices, supporting multi module integration and process automation control.

2、 Product Features

Central control and coordination

Process signals from various modules of the device (I/O modules, sensors, RF generators, power modules).

Control the execution of process steps to ensure synchronous operation of each module.

Communication and Network Interface

Supports industrial fieldbus (such as RS-485, CAN) and Ethernet protocols (Ethernet/IP, TCP/IP).

Can interact with the upper MES/SCADA system to achieve remote monitoring and data recording.

data acquisition and processing

Real time collection of process parameters, equipment status, and alarm information.

Provide data caching and processing capabilities to ensure process continuity.

Power Management and Protection

Allocate and manage power supply for board and peripheral modules.

Built in overcurrent, overvoltage, and short-circuit protection mechanisms enhance system safety.

Diagnosis and maintenance support

Provide status indication and diagnostic interface for on-site maintenance and troubleshooting.

Support modular replacement without the need for overall shutdown.

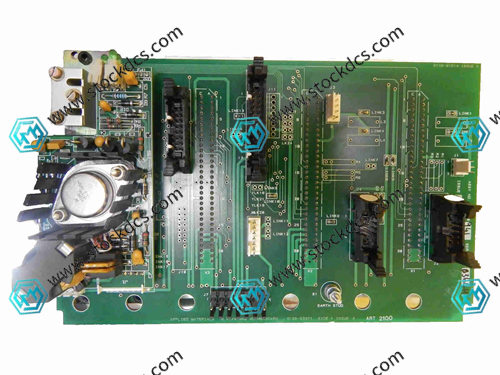

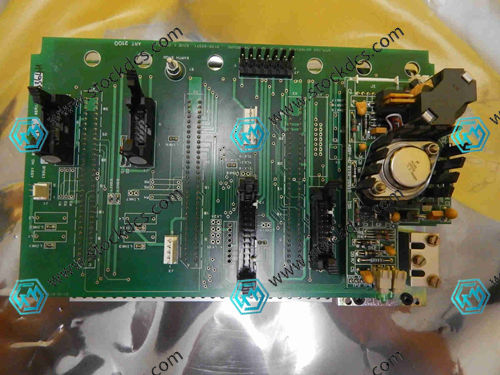

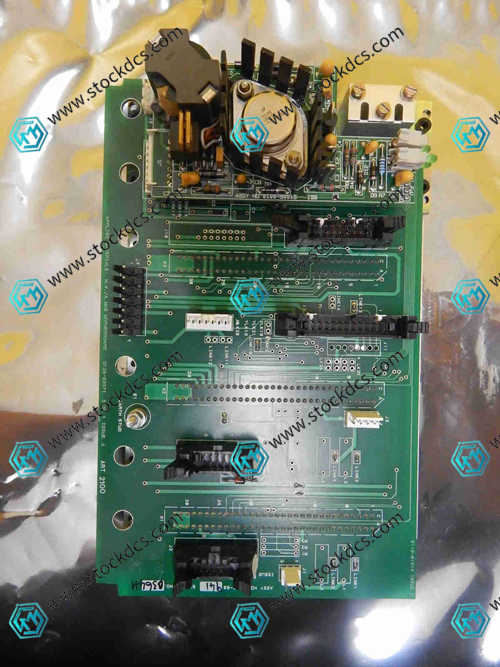

AMAT Applied Materials 0100-90941 Product imag
