Motorola MVME923 1982 Backplane Module

Motorola  MVME923 1982 Backplane Module

Product Details Introduction

Product Overview

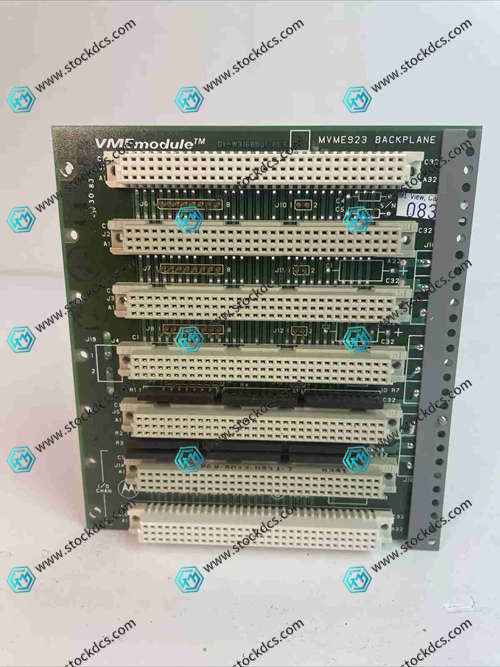

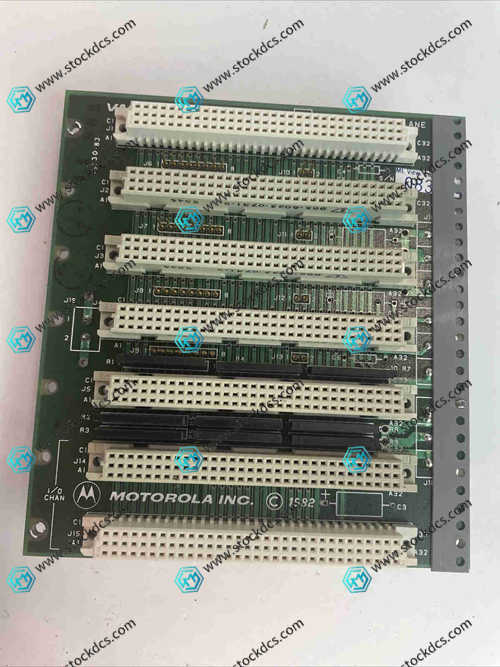

Motorola MVME923 1982 is a VME bus backplane module used for interconnecting MVME series single board computers and functional modules. It provides standardized VME bus connection interfaces, supporting high-speed transmission of data, address, and control signals, ensuring reliable communication and synchronization between system components. This module is one of the fundamental hardware components for building a VME system.

Technical Specifications

Type: VME bus backplane module

Compatibility: Supports MVME series CPU modules and I/O modules

Slot number: The common configuration is 6-21 slots (specific models can be adjusted according to the system chassis)

Bus standard:

Support VME64/VMEbus standards

Address mode: A16/A24/A32

Data mode: D08/D16/D32

Signal integrity: Adopting industrial grade PCB design to ensure stable signal transmission

Power distribution: Standard power sources such as+5V and ± 12V are provided to the module through the backplane

Size and Installation: Compliant with VME chassis size specifications, easy to modularize installation

Application scenarios

Industrial Automation Systems: As an Interconnected Platform between MVME Single Board Computers and I/O Modules

Embedded Control Platform: Provides data and control bus for multi module embedded systems

Testing and Measurement System: Achieving high-speed synchronization and data transmission between modules in instrument equipment

Communication System: Switches, Base Stations, and Control Nodes for VME Architecture

Military and Aviation: Modular Interconnection for Embedded Command and Control Systems
