Extreme Networks 220-24-10GE2 Port Switch

Extreme Networks  220-24-10GE2 Port Switch

Product Details Introduction

Double density Gigabit Ethernet configuration: Extreme Networks 220-24-10GE2 is equipped with 24 10/100/1000Base-T non PoE Gigabit Ethernet ports, doubling the number of ports compared to 12 port models. It can connect to non power demand terminals such as PCs, printers, servers, etc., and is suitable for high-density access scenarios in medium to large office areas and data centers.

10GE fiber optic high-speed uplink: equipped with 2 10GBase-X SFP+optical ports, supporting 10Gbps transmission rate, which is 10 times higher than gigabit uplink bandwidth, providing a stable channel for high bandwidth interaction between terminal clusters and core networks, and adapting to bandwidth intensive services such as video conferencing and big data transmission.

Full port line speed forwarding performance: Designed with a non blocking architecture, all ports support line speed processing, ensuring seamless transmission of 24 Gigabit access and 10G upstream data, meeting the performance requirements for concurrent communication of multiple devices, and adapting to the efficient operation standards of enterprise level networks.

L2/L3 Multi Layer Fusion Routing Function: As a Layer 3 managed switch, it has a complete set of Layer 2 features and supports both static routing and RIP dynamic routing protocols. It can achieve complex network segmentation, cross segment communication, and routing optimization, and is suitable for deployment in multi-layer network architectures.

Multi dimensional flexible management system: supports triple management mode - ExtremeCloud IQ cloud platform centralized control (realizing wired and wireless integrated operation and maintenance), web browser visual configuration, and industry standard CLI command line and script functions, adapting to the operational needs of novice to advanced operation and maintenance personnel.

Refined security protection mechanism: Built in access control list (ACL), which can accurately control traffic based on port, IP address and other dimensions. Combined with broadcast storm suppression function, it effectively prevents unauthorized access, traffic attacks and other security risks, ensuring the security of network data transmission.

Rack optimization deployment design: Adopting a 1U standard rack structure with dimensions of 1.73 "× 17.38" × 10.01 "and a weight of 7.08lb (3.21kg), it is suitable for standard server room rack installation. The compact body does not occupy too much space, and is compatible with fixed installation and desktop deployment scenarios.

Redundant power supply enhances reliability: Compared to the 12 port model, the addition of redundant power supply support options allows for external backup power modules, coupled with a 100-240V wide AC input design, effectively avoiding network interruptions caused by single point power failures and providing high reliability guarantees for critical business scenarios.

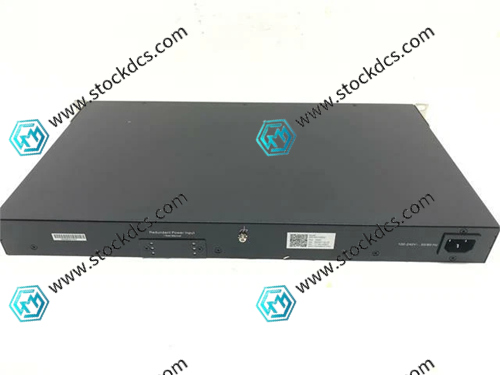

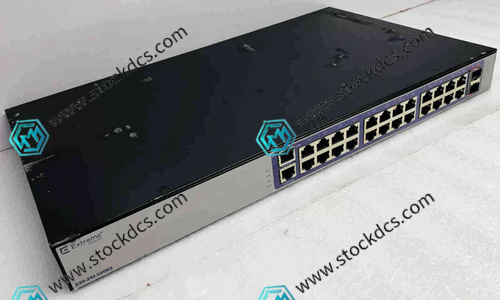

Extreme Networks 220-24-10GE2 Product imag
