Extreme VSP7400-48Y-8C-AC-F Port Switch

Extreme Networks VSP7400-48Y-8C-AC-F Port Switch

Product Details Introduction

1. Adaptation scenarios and functions (VSP7400-48Y-8C-AC-F)

Equipment positioning: Extreme VSP7400 series modular switches for core/aggregation layers, targeting large enterprise campus networks and medium-sized data center core nodes, suitable for high-density 10G access and 40G/100G uplink scenarios, and can serve as core routing switches or aggregation layer data forwarding nodes.

Port configuration: Equipped with 48 10G SFP+"Y" type ports (supporting flexible switching of copper/fiber media), 8 40/100G QSFP28 "C" type upstream ports, supporting port splitting (such as splitting 40G into 4 × 10G), and adapting to the docking needs of different speed terminals and higher-level devices.

Core function: Responsible for high-speed data forwarding, routing calculation, and business isolation across the entire network, supporting EVPN-VXLAN virtualization deployment, BGP-LS traffic engineering, and collaborating with ExtremeCloud IQ to achieve zero trust security and network wide visual operation and maintenance, ensuring high availability of the core network.

2. Performance and Scalability (VSP7400-48Y-8C-AC-F)

Forwarding performance: Switching capacity of 1.28Tbps, packet forwarding rate of 960Mpps, adopting non blocking architecture, with 48 10G ports and 8 100G ports simultaneously transmitting at full speed without bottlenecks; The MAC address table supports 1M entries, while the IPv4/IPv6 routing table supports 256K entries each, making it suitable for large-scale networks.

Upstream expansion: 8 QSFP28 ports support 40G/100G rate adaptation, and VSP stacking can be achieved through stacking modules (up to 8 devices can be stacked), with a stacking bandwidth of 800Gbps, improving core layer redundancy and expansion capabilities.

Business hosting: Supports 1024 VLANs per port, 8 priority queues, compatible with wide area network protocols such as MPLS VPN and BGP EVPN, capable of hosting multiple concurrent services such as voice, video, and storage, meeting enterprise level multi scenario requirements.

3. Structure and Management Design (VSP7400-48Y-8C-AC-F)

Physical specifications: 2U rack mounted design (8.89cm × 44.45cm × 50.8cm), weight 14.5kg, built-in dual redundant AC power supply (marked as "AC-F"), supports hot swapping; Equipped with 2 modular fan trays, supporting front and rear/left and right air duct switching, suitable for the cooling layout of the computer room.

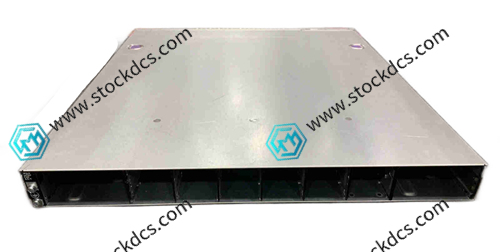

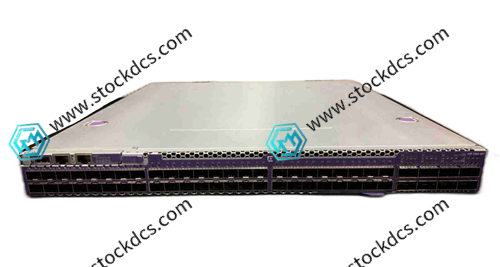

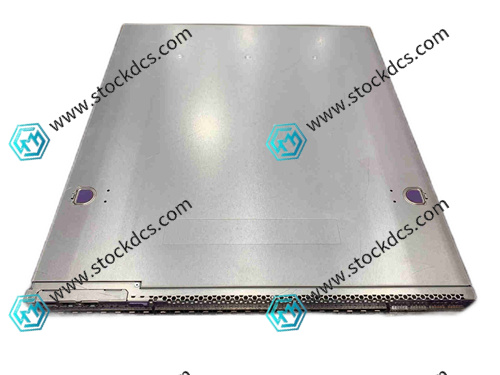

Extreme Networks  VSP7400-48Y-8C-AC-F Product imag
