Product Details Introduction

Product Overview

The AMAT 0010-09292 amplifier is a critical electronic module in Applied Materials semiconductor equipment, used to enhance and stabilize signal output to drive RF or control systems in process equipment. This amplifier plays a core role in plasma technology, signal control, and power transmission, ensuring that signal strength and quality meet the requirements of high-precision semiconductor manufacturing processes.

Technical parameters (inference and industry norms)

Type: Signal amplifier/Power amplifier

Function: Enhance electronic signal strength to ensure reliable driving of downstream modules or process components

Signal type: Radio Frequency (RF) signal or Low Voltage Control signal

Operating frequency range: Depending on the RF application, it can operate in 13.56 MHz, 27 MHz, or other process frequency bands

Power range: Suitable for process driven requirements, possibly ranging from tens of watts to hundreds of watts

Interface: Standard board to board or connector interface, connected to the main control module or cavity load

Work environment: Stable operation under clean room conditions, with anti-interference ability

Application scenarios

Radio frequency plasma process

Provide stable RF signals for plasma sources to ensure uniformity and stability during etching and deposition processes.

Signal driven control module

Amplify low-power signals from the controller to drive execution modules such as valves, sensors, or heaters.

process parameters optimization

Provide stable signal output to improve process repeatability and product yield.

Fault monitoring and protection

When the signal is abnormal, it can cooperate with the monitoring system for fault diagnosis and protection operations.

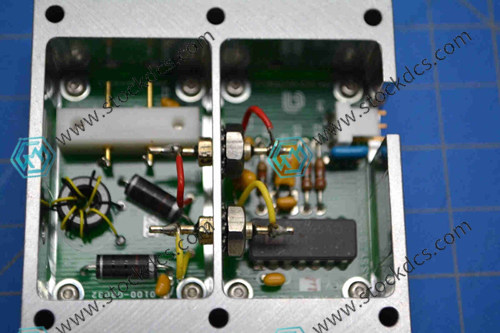

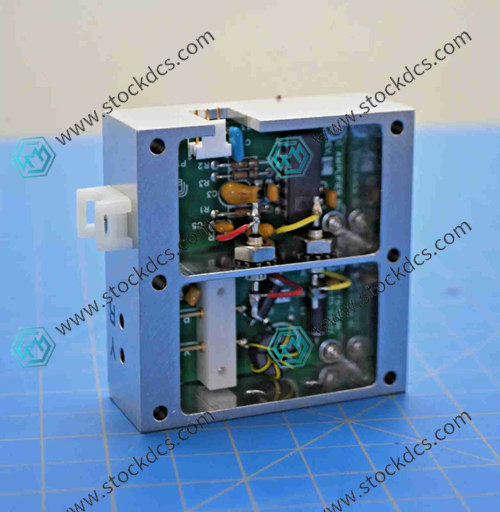

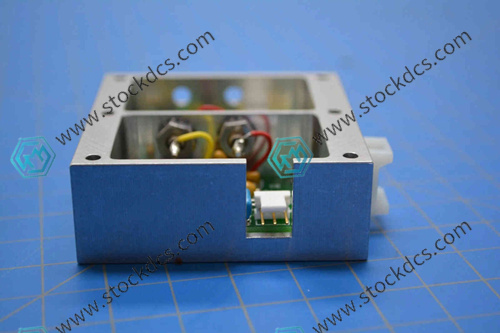

AMAT Applied Materials 0010-09292 Amplifier Product imag
