Product Details Introduction

Product Overview

Control Techniques UNI1404 is a low-power alternating current (AC) motor driver belonging to the UniDrive series. It is mainly used to control the speed, direction, and torque of small three-phase asynchronous motors, suitable for industrial automation equipment, experimental benches, and light mechanical drive scenarios. The driver is designed to be compact, easy to operate, and has basic protection functions to ensure the safe operation of motors and equipment.

Technical Specifications

Model: UNI1404

Type: AC Drive/VFD

Motor type: Three phase asynchronous motor

Rated power: approximately 1.2 kW (specific configuration based on model)

Input power supply: single-phase or three-phase 200-240 V AC

Output: Three phase adjustable voltage, supporting variable frequency control

Control method:

V/F (voltage/frequency) control

Simple vector control (supported by some models)

Protection functions: overload, overvoltage, undervoltage, short circuit, overheating protection

Communication interface: Supports analog/digital interfaces, some models support Modbus

Installation method: wall mounted or cabinet mounted, modular design

Application scenarios

Light industry automation: control of small conveyor belts, mixers, and packaging equipment

Building and HVAC Systems: Energy saving Speed Control of Fans and Pumps

Experiment and Teaching: Motor Control Experiment Platform and R&D Testing Equipment

Small production lines: food processing, light industry manufacturing, textile machinery, etc

Energy Management: Precise Control and Energy saving Operation of Small Pump and Fan Systems

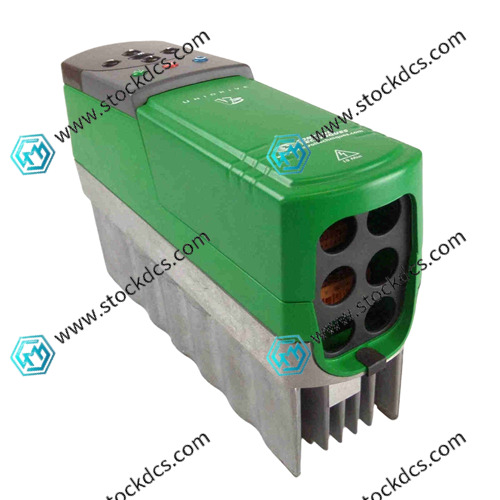

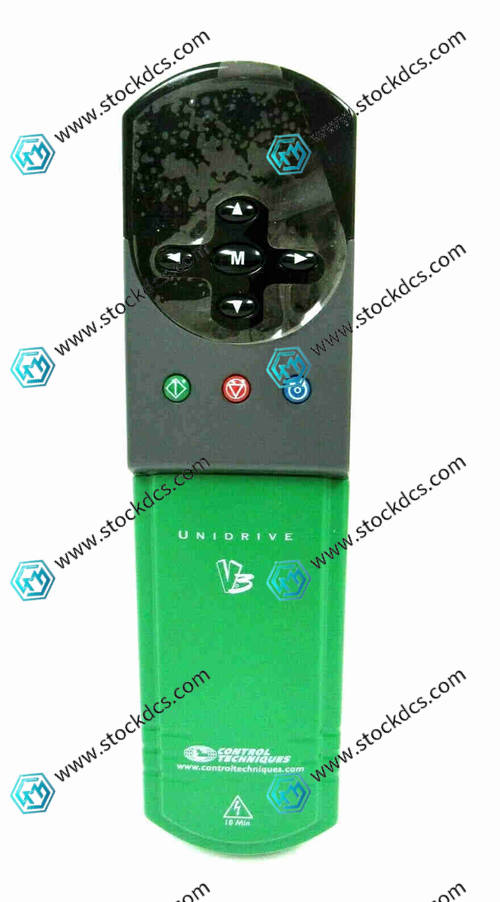

Control Techniques UNI1404 AC Motor Drive  Product imag
