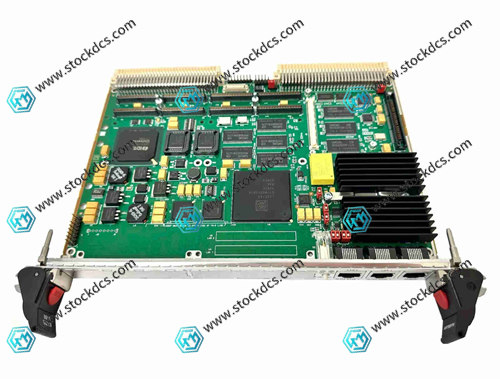

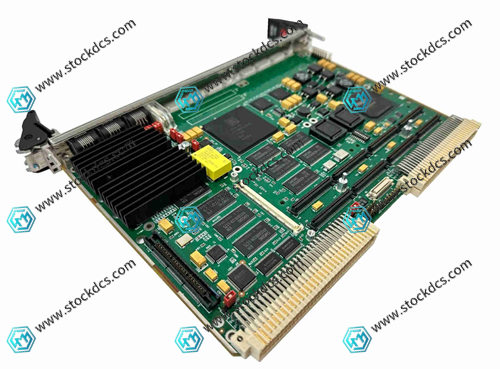

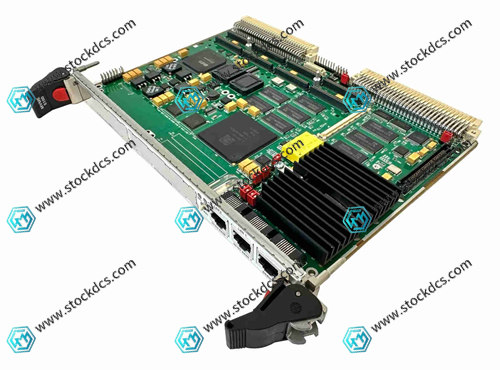

Motorola MVME5110-2263 Single Board Computer

Product Overview

Motorola MVME5110-2263 is a high-performance single board computer (SBC) with VMEbus architecture, belonging to the MVME5000 series. This module integrates high-performance CPUs, memory, I/O interfaces, and bus controllers, and is used in scenarios such as industrial automation, embedded control, communication systems, and scientific research testing. MVME5110-2263 can serve as the core processing unit of the system, seamlessly collaborating with VME bus and other modules to achieve high-speed data processing and reliable control.

Technical Specifications

Processor: PowerPC or Motorola PowerPC series (specific model depends on version)

Memory:

RAM：64 MB – 256 MB， scalable

Flash/ROM: Used for booting programs and firmware

NVRAM: with real-time clock

Bus interface: VME64 or VME64x standard, supporting 32/64 bit data transmission

I/O interface:

Multi channel serial interface (RS-232/RS-422/RS-485)

Parallel Interface

USB or Ethernet (optional by model)

Control function:

Bus arbitration and DMA data transfer

interrupt management

Timer and watchdog

System compatibility: Supports embedded operating systems such as VxWorks, Linux, pSOS, etc

Work environment: Industrial grade design, suitable for wide temperature operation, long-term reliable operation

Application scenarios

industrial automation control

Manage production lines and equipment as the core computing and control unit.

Embedded real-time control system

High speed data processing, multitasking control, and real-time feedback.

Testing, Measurement, and Research Equipment

Data collection, experimental control, and signal processing platform.

Communication and network equipment

Embedded network nodes, controllers, and communication protocol processing.

Energy and Power Systems

Real time monitoring and control of power generation, transformation, and distribution systems.

Military and aerospace applications

High reliability embedded platform for real-time task processing and data acquisition.
