Product Details Introduction

Product Overview

The Giddings&Lewis 502-03644-00 DC output board is a functional module in the PiC900 series control system, mainly used to convert the logic signals of the controller into DC output signals to drive external loads. This module can provide stable driving capability for solenoid valves, relays, light indicators, and other DC actuators in industrial automation equipment.

Technical Specifications

Module type: DC digital output board

Output points: Typically designed for multi-channel output (commonly 16 or 32 points)

Output voltage: DC 24V standard industrial voltage

Output current capability: Each channel has a certain load driving capability (typically around 0.5A)

Isolation protection: equipped with photoelectric isolation to enhance the safety and anti-interference between the module and external circuits

Diagnostic function: equipped with LED status indicator lights, which can display the output status of each channel for easy debugging and maintenance

Interface method: Adopting standard backplane connection and screw terminal/plug-in terminal method for convenient wiring

Application scenarios

Machine tool control

Used for driving actuators in CNC machine tools, such as controlling lubrication pumps, solenoid valves, clamping devices, etc.

Automatic production line

It can drive the DC actuator units in conveyor belts, sorting devices, and packaging systems to achieve motion control.

process control system

In industries such as metallurgy, chemical engineering, and energy, it is used to output DC control signals, control valve opening and closing, and relay action.

Signal indication and alarm system

Drive warning lights, buzzers, and other devices to achieve status display and alarm output.

Product Features

Stable and reliable: Industrial grade design ensures long-term continuous operation.

Isolation protection: Isolation between channels and control logic enhances security and anti-interference.

Strong output capability: able to directly drive small and medium power DC loads.

Easy maintenance: LED status indication and modular design, convenient for installation, replacement, and on-site debugging.

Good compatibility: It can be directly installed in the Giddings&Lewis PiC900 control system rack and supports system expansion.

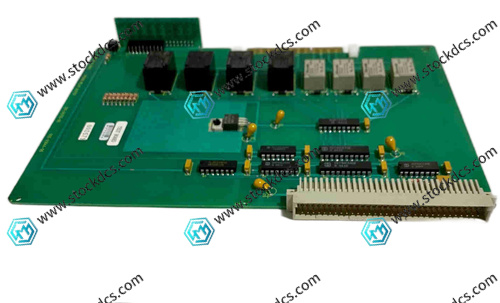

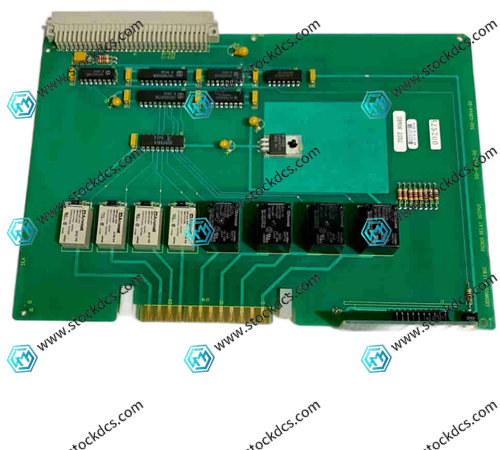

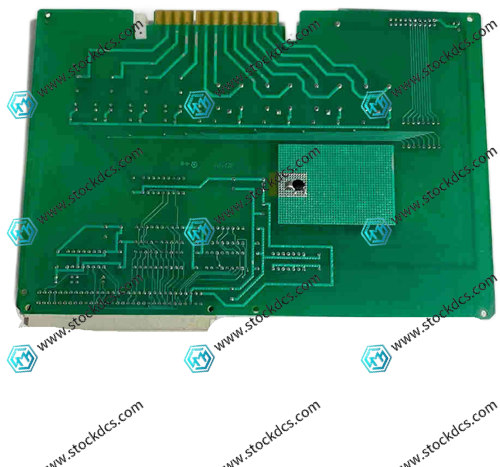

Product imag
