AMAT Applied Materials 0190-09378 single-phase driver

Product Overview

0190-09378 is a single-phase drive unit in AMAT semiconductor equipment, mainly used to provide stable drive for low-power AC loads or single-phase motors. This driver is typically used for pneumatic pumps, solenoid valves, cooling fans, or other low-power single-phase motors in process equipment to achieve precise control and stable operation of the equipment.

Technical functions and features

Stable single-phase drive

Provide stable voltage drive for single-phase AC power supply to ensure stable operation of load equipment.

Support speed regulation, start stop, and direction control (based on load type).

Multiple protection mechanisms

Built in overcurrent, overvoltage, short circuit, and over temperature protection to ensure equipment and wafer safety.

Can be linked with the device controller to achieve interlock protection.

Compatibility and Interface Design

Modular design allows for quick connection with controllers, power modules, and load devices.

Adapt to the standard single-phase load interface within AMAT semiconductor equipment.

high reliability

Adapt to the high cleanliness and long-term continuous operation environment of semiconductor equipment.

Low noise design, suitable for cleanroom process environments.

Application field

Pneumatic pump and low-power driver

Drive pneumatic pumps, pneumatic valves, or vacuum assist devices to achieve process gas path control.

cooling system

Drive fans or small liquid cooled pumps to provide temperature control for chambers, thermal ion heaters, or elevators.

Wafer handling system

Drive low-power motors for Loadlock or elevators to achieve safe wafer handling.

Automated production line auxiliary equipment

Drive transmission belts, positioning mechanisms, or auxiliary machinery to achieve automated actions and process synchronization.

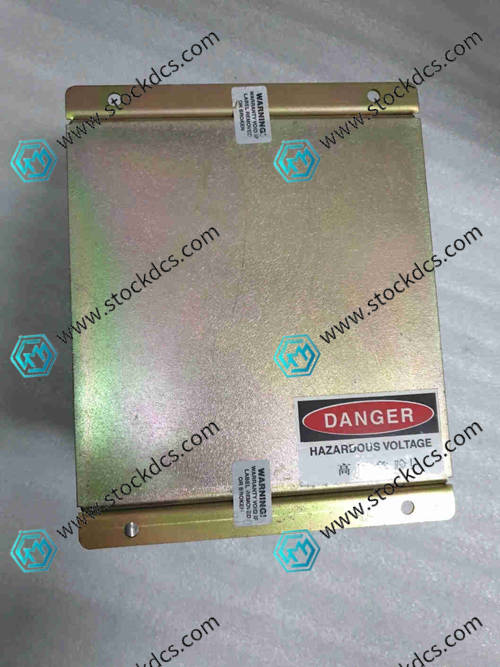

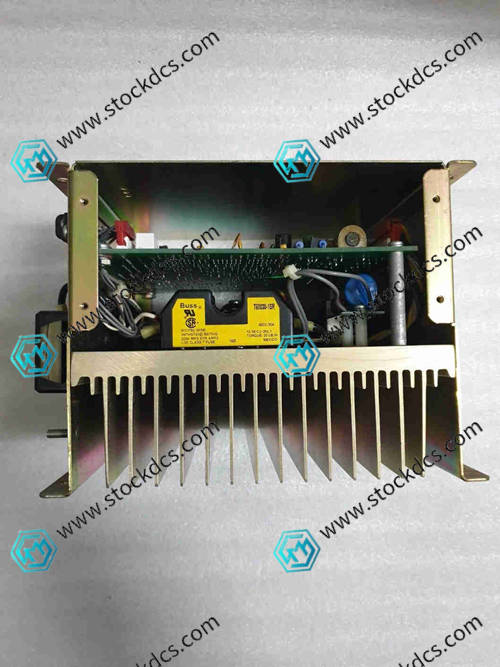

AMAT Applied Materials 0190-09378 single-phase driver Product imag
