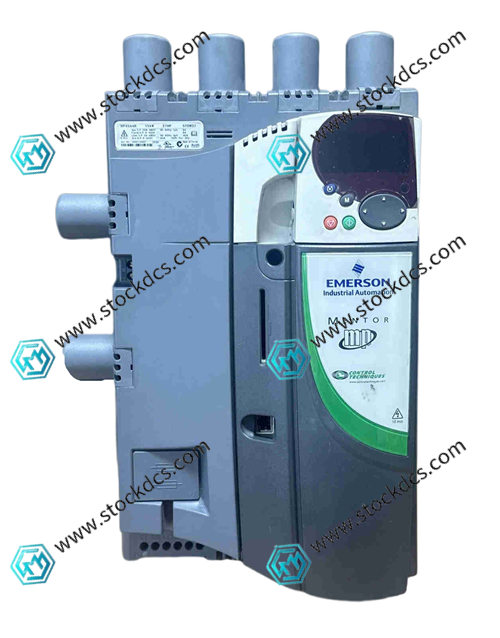

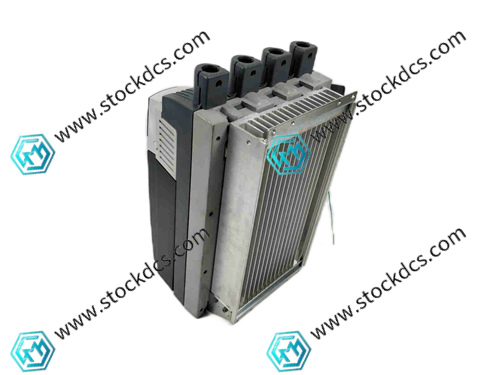

Control Techniques MP45A4R Inverter

Control Techniques MP45A4R Inverter

Product Details Introduction

Product Overview

Control Techniques MP45A4R is a high-performance DC inverter from the Mentor MP series, designed specifically for precision speed and torque control in industrial automation. This module supports four quadrant operation (forward/reverse and regenerative braking), suitable for industrial applications with frequent acceleration and deceleration and high dynamic response.

Technical Specifications

Model: MP45A4R

Series: Mentor MP

Input voltage: three-phase 208-480 V AC, 50/60 Hz

Input current: 40 A

Output current (armature): 45 A

Output power: approximately 15 kW (20 HP)

Field current: 8 A

Control mode: Four quadrant (regenerative braking)

Installation method: Cabinet installation

Weight: Approximately 10.2 kg

Application scenarios

Industrial automation equipment: such as conveyor systems, packaging machinery, production lines

Precision machining equipment: CNC machine tools, laser cutting machines

Robot system: providing precise motion control

Experimental and testing equipment: for high-precision control requirements

Product advantages

Four quadrant operation: supports regenerative braking and forward/reverse rotation, suitable for high dynamic loads

High performance control: precise control of speed and torque to meet precision industrial requirements

Multi control modes: adapted to different application requirements

Compact design: Cabinet installation saves space and facilitates system integration

High reliability: Industrial grade design, capable of continuous operation and adapting to harsh environments
