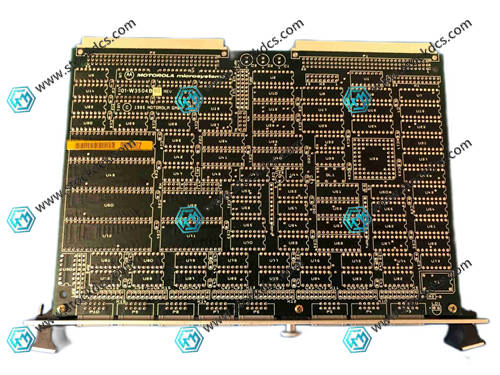

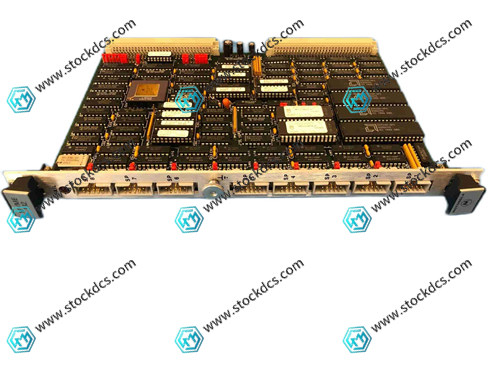

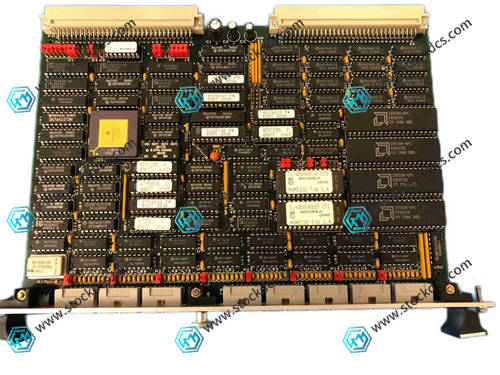

Motorola MVME332 01-W3504B-01D Digital Control Board

Motorola  MVME332 01-W3504B-01D Digital Control Board

Product Details Introduction

1、 Product Overview

Motorola MVME332 01-W3504B-01D is a digital control board with VME bus architecture, mainly used in industrial automation and embedded control systems. This module uses high-performance digital I/O interfaces to collect, monitor, and control external signals, making it suitable for scenarios that require high-speed response and high reliability.

2、 Technical parameters

Product Model: MVME332

Part number: 01-W3504B-01D

Function type: Digital input/output control board

Bus interface: compatible with VMEbus standard

Number of input/output channels:

Digital input channel: multi-channel isolation design, strong anti-interference ability

Digital output channel: supports switch output and can directly drive external devices

Signal characteristics:

Input signal level: TTL/CMOS compatible

Output signal type: Open collector electrode/relay drive (configured according to version)

Working environment:

Temperature range: 0~55 ° C (industrial grade version can be extended to a wider range)

Anti vibration and anti impact design, suitable for industrial applications

3、 Application scenarios

industrial automation control

Digital sensors, switch signal acquisition

Control of relays and actuators

process control system

Status detection and control of factory production line equipment

Logical interlocking, start stop control

Testing and Measurement System

Sampling and output of digital signals

Laboratory testing equipment interface

embedded control

Cooperate with Motorola MVME series CPU modules to form a complete control subsystem
