Motorola MVME224A-1 01-W3588B Dynamic Memory Module

Motorola MVME224A-1 01-W3588B Dynamic Memory Module

Product Details Introduction

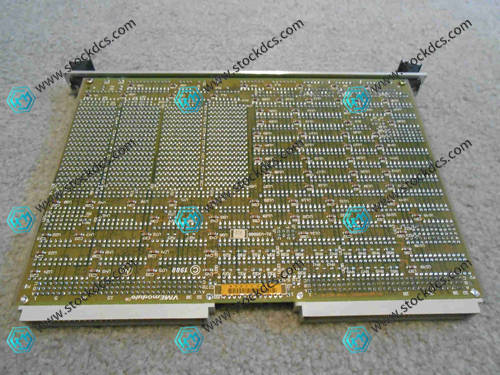

Motorola MVME224A-1 01-W3588B Dynamic Memory Module

Product Overview

Motorola MVME224A-1 (model 01-W3588B) is a dynamic memory expansion module designed for the MVME224 series single board computers under the VMEbus architecture. This module is used to provide high-speed dynamic random access memory (DRAM), expand the system's memory capacity and data processing capabilities, and is suitable for industrial automation, embedded control, and real-time computing systems. MVME224A-1 supports seamless integration of VME bus and CPU module, ensuring reliable performance of the system in high load and multitasking environments.

Technical Specifications

Memory type: Dynamic Random Access Memory (DRAM)

Capacity: Typical 4 MB -16 MB (configurable or depending on version)

Interface: VMEbus standard interface, supporting 16/32-bit data bus

Timing characteristics: high-speed access, supporting synchronous access of CPU

Electrical characteristics: Industrial grade design, strong anti-interference ability, with power protection

Compatibility: Compatible with MVME224 series CPU modules

Working environment: Industrial temperature rating, suitable for long-term continuous operation

Application scenarios

Industrial automation system

Expand the memory capacity of the controller for complex control algorithms and data caching.

Embedded real-time control

Support multitasking real-time operating systems to improve system computing power and response speed.

Data Collection and Testing System

Used for high-speed data storage and processing, meeting the needs of scientific research and industrial experiments.

Communication and network equipment

Provide caching and temporary data storage to improve data exchange speed and reliability.

Military and Aerospace Systems

Used for memory expansion in embedded computing platforms to ensure long-term stable operation.

Product advantages

High speed dynamic storage: supports CPU high-speed access and improves system data processing capabilities.

Modular expansion: It can be independently replaced or upgraded, making it convenient for system expansion.

High reliability: Industrial grade design, strong anti-interference ability, suitable for long-term operation.

Good compatibility: seamlessly integrates with MVME224 series CPU modules and VMEbus systems.

Easy maintenance: Standardized module design for easy replacement and upgrade.
