Motorola MVME172-263 01-W3183F-10A Digital Control Board

Motorola MVME172-263 01-W3183F-10A Digital Control Board

Product Details Introduction

Motorola MVME172-263 01-W3183F-10A Digital Control Board

Product Overview

Motorola MVME172-263 is a digital control board based on the VMEbus architecture, with model 01-W3183F-10A indicating its specific hardware version and revision number. This module is used in embedded control systems to implement digital input/output (DI/DO) control and is widely used in industrial automation, testing and measurement, machine tool control, and communication systems. MVME172-263 can work in conjunction with MVME172 series CPU modules and other I/O boards, providing reliable digital control interfaces and signal management capabilities.

Technical Specifications

Bus interface: VMEbus standard, supports 16/32-bit data transmission

Digital quantity interface:

Multi channel digital input (DI)

Multi channel digital output (DO)

Output can drive relays or switch loads

Control logic:

Support pulse, timing control, and status feedback

Configurable trigger conditions and interrupt response

Compatibility: Compatible with MVME172 series CPU modules and other VMEbus boards

Reliability design: Industrial grade design with anti-interference and short-circuit protection functions

Work environment: Suitable for industrial temperature range, long-term continuous operation

Application scenarios

industrial automation control

Responsible for digital signal input and output control of production line mechanical equipment and PLC systems.

Machine tools and motion control systems

Control motor start/stop, limit switch detection, and actuator status feedback.

Laboratory and testing equipment

Realize digital signal acquisition, trigger control, and data recording.

communication equipment

Manage digital signal interfaces to achieve device status monitoring and control.

Energy and Power Systems

Digital monitoring and control of switchgear, relays, and protective devices.

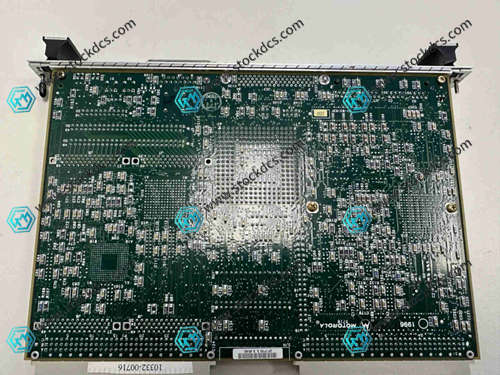

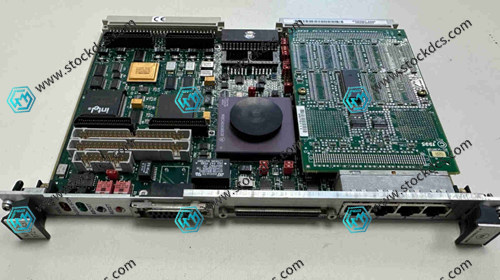

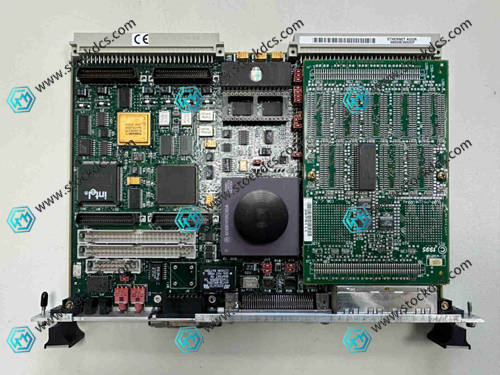

Motorola MVME172-263 01-W3183F-10A Digital Control Board  Product imag
