Motorola VME162PA344SE CPU Control Bus Board

Motorola VME162PA344SE CPU Control Bus Board

Product Details Introduction

Product Overview

Motorola VME162PA344SE is an embedded CPU control bus board based on the VME bus architecture, belonging to the VME162 series of processor modules. This board integrates high-performance processors, memory, and multiple interfaces, mainly serving as the core control unit of the system, and is widely used in industrial control, military industry, communication, and scientific research fields.

Technical Features

Processor: Based on Motorola 68040 or 68030 series processors, it has strong real-time computing capabilities

Bus architecture: fully compliant with the VMEbus standard, supporting collaboration with other VME modules

Storage capacity: Supports large capacity DRAM, SRAM, and EPROM/Flash memory

Rich interfaces: multiple serial ports, parallel ports, timers, and Ethernet/serial communication interfaces

Operating System: Compatible with real-time operating systems such as VxWorks and OS-9

Structural design: sturdy and durable, suitable for high load and long-term operating environments

Application field

Industrial Automation

Real time monitoring and process control of production equipment

Factory data collection and execution unit management

Automated production line scheduling and control

Electricity and Energy

Power plant automation control and protection

Monitoring and Data Collection of Transmission and Distribution Networks

Energy dispatch and load management

Traffic and Transportation

Signal and train control systems for railways and subways

Intelligent Traffic Monitoring and Scheduling

Vehicle/Ship Control and Safety System

Defense and Aerospace

Missile Guidance and Radar Signal Processing

Aircraft avionics and onboard control system

Aerospace Ground Control and Attitude Control

Communications and Networking

Telecommunications switch control unit

Satellite Communication and Data Processing

Network protocol processing and routing control

Research and Medical

Core control of high-energy physics experimental equipment

Embedded computing of medical imaging equipment

Laboratory Automation and Measurement and Control System

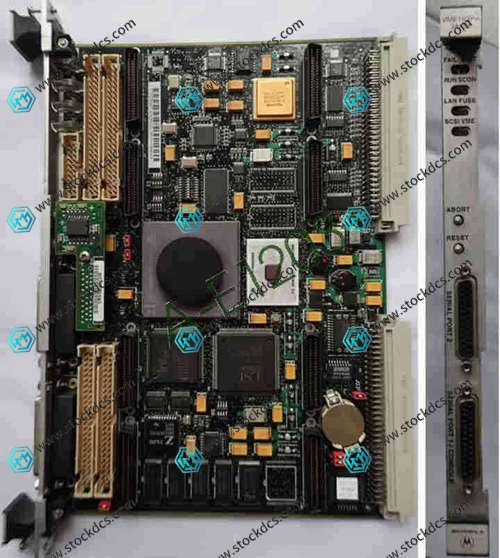

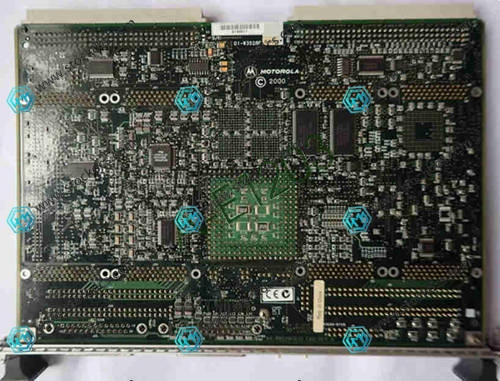

Motorola  VME162PA344SE CPU Control Bus BoardProduct imag
