HF 3156360-015 RF Generator

HF 3156360-015 RF Generator

 Introduction

The HF 3156360-015 RF generator is a semiconductor equipment plasma process RF power supply unit that provides RF power to the process chamber. The core product features are as follows:

1. High power output accuracy and good consistency of process output

2. Supports both continuous and pulse RF output modes

3. Self adaptive load, adapted to cavity impedance fluctuations

4. Excellent harmonic suppression, reducing plasma process interference

5. Multiple fault protection against standing waves, overheating, and overcurrent

6. Real time feedback of power and standing wave detection data

7. Adapt to the machine bus and be able to interface with the main control system of the equipment

8. Water cooling and heat dissipation, capable of continuous operation at full power for a long time

9. Fast impedance matching response and rapid plasma ignition

10. Fault code output, convenient for equipment troubleshooting

11. Rack mounted structure, convenient disassembly and replacement of cabinets

12. Anti dust corrosion, suitable for dust-free workshop environment

13. Wide power regulation range, compatible with multiple process formulas

14. Status indicator light, providing intuitive feedback on operating conditions

15. RF isolation design to reduce system signal crosstalk

The HF 3156360-015 RF generator operates stably and is commonly used for supplying power to etching and thin film deposition semiconductor process chambers.

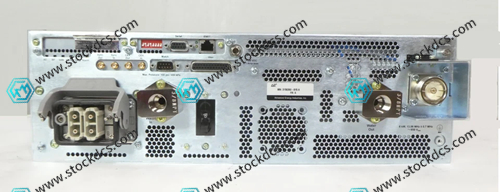

Product imag
