Ansaldo P697 T Dual SCR Trigger Circuit PCB

Ansaldo P697 T Dual SCR Trigger Circuit PCB

Product Details Introduction

Ansaldo P697 T dual SCR trigger circuit PCB is a specialized trigger board for industrial control rectification systems, with precise triggering and reliable operation.

Based on the P697 T circuit architecture, achieve dual channel thyristor triggering function

Accurate matching of grid phase, wide range of trigger angle adjustment

Output high-intensity trigger pulses to ensure stable conduction of the device

Dual channel optoelectronic isolation effectively isolates strong and weak electrical interference

Built in synchronous detection circuit, real-time monitoring of power grid operation status

Control signal shaping and amplification, strong driving performance

Equipped with surge and current limiting protection to resist voltage and current surges

Using industrial grade components, it can work normally in both high and low temperature environments

The board surface is treated with three protections, including dust, moisture, and excellent corrosion resistance

Equipped with status indicator lights, the operation and fault situation are clear at a glance

Using standard wiring terminals, easy and convenient docking and disassembly

Overall low power consumption, reducing the power supply burden on the system

Single channel can operate independently, with higher fault tolerance

Precise circuit timing, small triggering error, stable output

Compatible with devices of the same series, can directly replace accessories of the same model

Overall, the Ansaldo P697 T dual SCR trigger circuit PCB has stable performance and strong adaptability, making it a core supporting board for industrial rectification and excitation equipment.

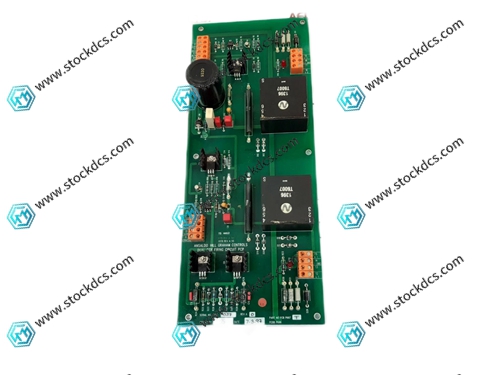

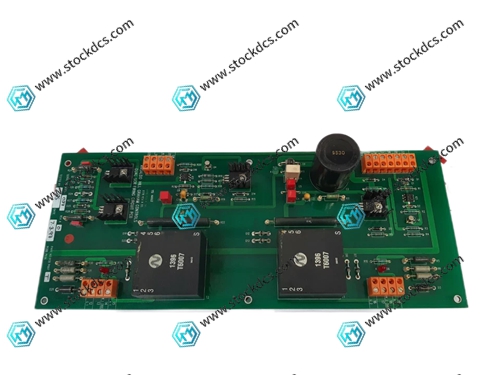

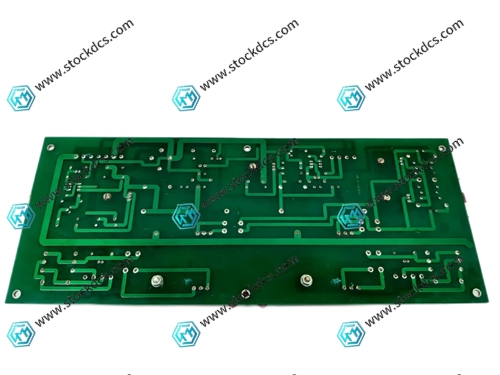

Product imag
