GIDINGS&LEWIS 572-03553-01 DC Input Board

GIDINGS&LEWIS 572-03553-01 DC Input Board

Product Details Introduction

GIDINGS&LEWIS 572-03553-01 DC Input Board

1、 Product Overview

GIDINGS&LEWIS 572-03553-01 is a DC input module for industrial control systems, used to collect digital signals from sensors, switches, and other DC signal sources, and convert them into data recognizable by the control system. This module provides high reliability signal processing and anti-interference capabilities, and is a key input interface unit in CNC machine tools, automated production lines, and robot systems.

2、 Technical parameters (typical indicators, specific subject to physical object)

Module type: DC input board

Input voltage range: DC 5-30V

Number of channels: Multi channel input (typical 8-16 channels)

Input type: Digital DC signal (ON/OFF)

Response time: Typical 1-5 ms

Isolation method: photoelectric isolation, enhancing anti-interference ability

Interface method: Modular slot design, compatible with GIDDINGS&LEWIS system bus

Working voltage: DC 5V/24V provided by the system rack

Work environment: Industrial grade temperature, anti vibration and anti electromagnetic interference design

Status indication: LED displays the signal status of each channel

3、 Application scenarios

CNC machine tool

Collect digital signals such as limit switches, emergency stop switches, and tool detection to achieve safety protection and status feedback.

Automatic production line

Monitor DC digital signals such as sensors, photoelectric switches, buttons, etc. to achieve process control and fault detection.

robot system

Collect the status of end effectors or sensors to provide feedback for closed-loop control and action logic.

process control system

Collect status signals of industrial equipment to ensure the accuracy and safety of system logic control.

Testing and experimental platform

Real time collection of various switch signals during experiments or testing processes to achieve precise monitoring.

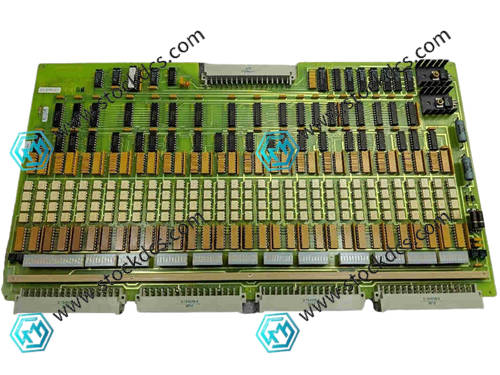

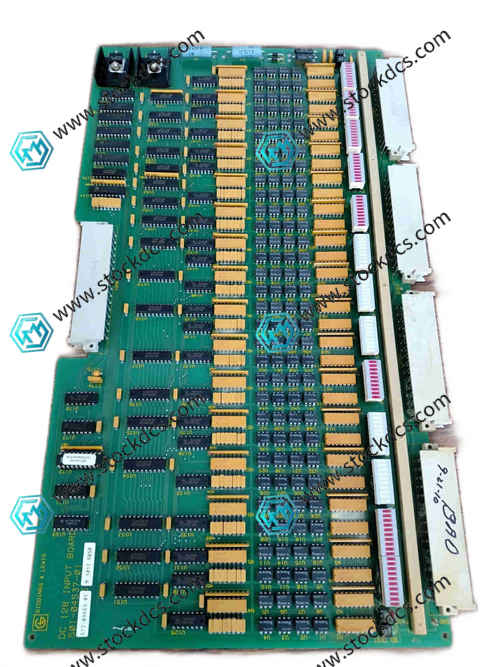

Product imag
