AEG Modicon 140DDO35300 Discrete Output Module

AEG MODICON 140DDO35300 Discrete Output Module

Product Details Introduction

The AEG Modicon 140DDO35300, as a Quantum series discrete output module, is equipped with 32 independent output channels to accurately drive industrial loads such as relays and solenoid valves.

Supports 24V DC output voltage (suitable for a wide voltage range of 19.2-30V), with a maximum load current of 0.5A per channel for 140DDO35300, and a total load of up to 16A, with sufficient power reserve.

The AEG Modicon 140DDO35300 adopts a solid-state relay design with a response time of ≤ 1 millisecond, ensuring high-speed execution and switching of industrial control commands.

The channel is divided into 4 groups and 8 modular configurations. The 140DDO35300 supports group independent control and is suitable for multi scenario load management requirements.

The AEG Modicon 140DDO35300 has 1780Vrms channel and bus isolation capability, outstanding anti electromagnetic interference performance, and is suitable for complex industrial environments.

Built in overvoltage suppression and 5A level fuse protection, the 140DDO35300 can effectively prevent faults such as short circuits and overloads, ensuring system safety.

The AEG Modicon 140DDO35300 is compatible with the Modbus RTU protocol and seamlessly integrates with the Quantum EcoStruxure Control Expert automation platform.

The working temperature range is -20 ℃ to 60 ℃, and the storage temperature can reach -40 ℃ to 85 ℃. 140DDO35300 is suitable for extreme working conditions such as severe cold and high temperature.

The panel is equipped with 32 status LEDs and fault indicator lights. The AEG Modicon 140DDO35300 provides intuitive feedback on channel operation and fault status, making it easy to quickly troubleshoot.

The size is only 292 × 124 × 56mm, the weight is 1.2kg, and the compact design of 140DDO35300 saves control cabinet space, making installation and deployment convenient.

AEG Modicon 140DDO35300 has passed multiple certifications such as CE, UL, RoHS, etc., meeting international industrial standards and adapting to global application scenarios.

Supports operation at altitudes up to 5000 meters, with 95% non condensing humidity tolerance. The 140DDO35300 is suitable for high-altitude and high humidity industrial scenarios.

The AEG Modicon 140DDO35300 is designed with low power consumption (maximum power of 7W), low heat generation, and is suitable for industrial control systems that operate continuously for a long time.

Widely used in the fields of automobile manufacturing, power, petrochemicals, etc., 140DDO35300 can achieve precise load control of production lines and generator sets.

AEG Modicon 140DDO35300 provides fault detection function, which can monitor the status of fuses and on-site power outages in real time, reducing operation and maintenance costs.

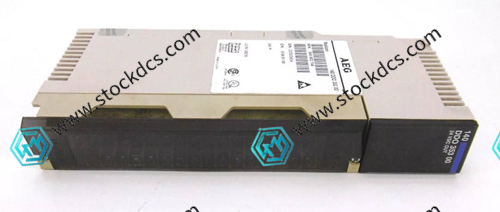

AEG MODICON  140DDO35300 Product imag
