TEL TKB7240 PCB interface board

TEL TKB7240 PCB interface board

 Introduction

TEL TKB7240 PCB interface board, a signal adapter board for Tokyo Electronic Semiconductor Equipment, enables signal interaction between the main control and various sub components, ensuring stable and reliable signal transmission.

Product Features:

1. Isolation processing of multiple IO signals to reduce electromagnetic interference in the cavity and ensure stable signal transmission

2. Onboard hardware filtering protection to prevent surge damage to backend sensors and actuators

3. Multiple sets of plug-in terminals to achieve fast signal docking between the main control board and peripheral components

4. Slot style modular installation, easy disassembly and replacement, reduces equipment downtime and maintenance time

5. Native compatibility with TEL device bus, can be connected to the overall control system without modification

Product Parameters:

1. Equipment type: Semiconductor equipment signal conversion PCB interface board

2. Working power supply: 24VDC cabinet power supply

3. Integrate multiple digital input and output signal channels

4. Multiple sets of connector terminals, compatible with the whole machine harness docking

5. Working temperature: 5-55 ℃, installed inside the cabinet

Application fields:

1. Signal relay of various subsystems inside TEL etching equipment

2. Process chamber sensor signal acquisition and forwarding

3. Signal interaction processing of wafer transfer robotic arm

4. Signal docking of temperature control and gas pipeline components

5. Signal interconnection between semiconductor equipment cabinet boards

Excellent signal isolation and switching capabilities make TEL TKB7240 PCB interface board an important signal interaction board for TEL semiconductor process equipment.

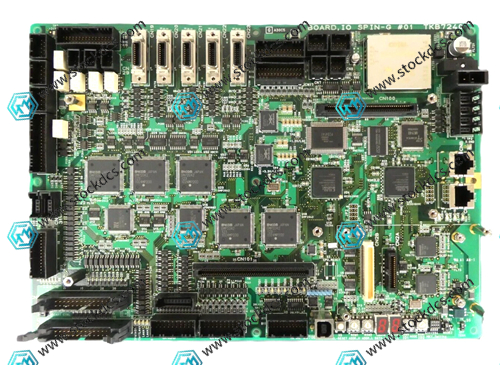

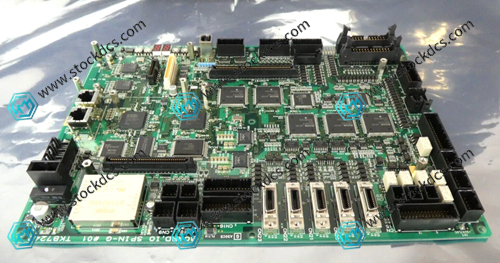

Product imag
