 Introduction

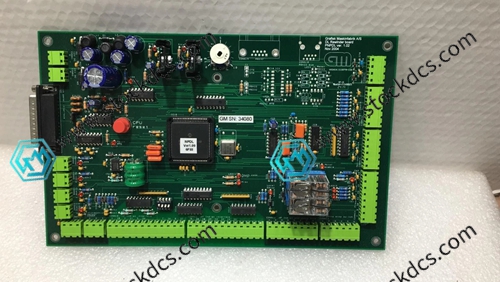

#GRAFISK 5187-8524 rewinding plate

GRAFISK 5187-8524 is a dedicated control board for rewinding equipment, used for signal acquisition and action control in the rewinding process of coil materials.

1. Adapt to the signal interface of the rewinding equipment and connect to the main control of the machine

2. Collect sensor signals related to coil tension and speed

3. Output driving signals to control the action of the winding mechanism

4. Onboard signal filtering to reduce on-site clutter interference

5. GRAFISK 5187-8524 supports roll diameter calculation and assists in tension adjustment

6. Multiple IO channels, compatible with various detection switches

7. Industrial board, anti vibration suitable for continuous operation on production lines

8. Wide temperature operation to adapt to internal temperature changes of the equipment

9. Equipped with fault detection and capable of outputting abnormal alarm signals

10. Reasonable layout of connectors and simple wiring debugging

11. Circuit isolation design to protect the board from surge damage

12. Support long-term uninterrupted production line operation

13. Modular board, easy disassembly and maintenance

14. Gold finger insertion, easy replacement of spare parts for machine use

15. GRAFISK 5187-8524 hardware parameters are factory calibrated and ready for use on the computer

GRAFISK 5187-8524 rewinding plate ensures the stable execution of tension control and winding action of rewinding equipment.

Product imag
