Product Details Introduction

product name

Atlas Copco PF3109-G-DN-HW processor

(Power Focus 3100 series high-performance intelligent tightening controller)

product overview

PF3109-G-DN-HW is a high-performance intelligent tightening controller in the Atlas Copco Power Focus 3100 series, integrating advanced processing capabilities and multifunctional communication interfaces.

G represents the advanced feature version with graphical user interface support

DN stands for built-in DeviceNet communication interface, which facilitates network connection in industrial sites

HW represents the standard hardware version

This processor is mainly used to control and drive high torque electric tightening tools in the Tensor series, achieving multi-stage torque and angle control, supporting real-time data acquisition and process quality monitoring.

Main application areas

Automobile manufacturing and final assembly

Precision bolt tightening for engine, chassis, steering system, and body structure

Support workstation level program switching and MES system data uploading to ensure assembly quality and process traceability

Assembly of new energy vehicles and power batteries

Tightening of key connections between battery modules, electrical control boxes, and electric drive systems

Prevent missing or over twisting to meet the high reliability assembly process requirements

Industrial Robot Tightening Workstation

Intelligent torque control in robot automated assembly line

Multi program management and support for complex process flows

Manufacturing of engineering machinery and rail transit equipment

High precision tightening control of large structural components and key connecting parts

Remote monitoring and quality data collection to ensure long-term stable operation

Manufacturing of household appliances and electronic products

Fast program switching in multi variety and small batch mixed line production

Real time process control and data tracking to enhance product consistency

Product advantages

High precision torque and angle control, excellent repeatability

Built in DeviceNet communication interface, compatible with mainstream industrial networks

The graphical interface is easy to operate and diagnose faults

Support multi-stage and multi strategy tightening process

Tighten real-time data collection to meet quality traceability requirements

Compatible with Atlas Copco Tensor series multiple models of power tools

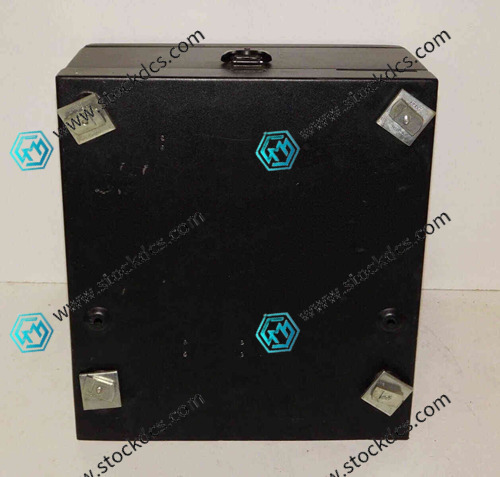

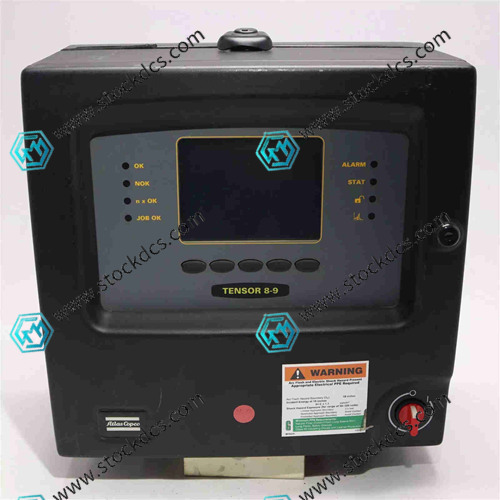

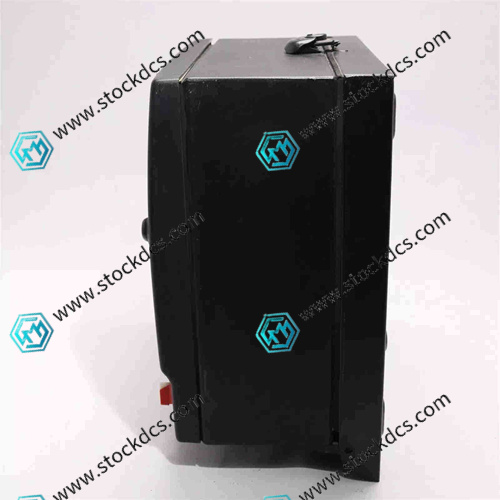

Product imag
