Silicon Graphics 030-8216-001 Printed Circuit Board

Silicon Graphics 030-8216-001 Printed Circuit Board

Product Details Introduction

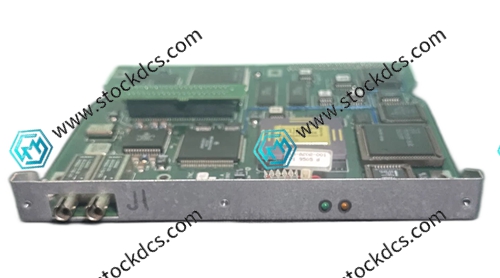

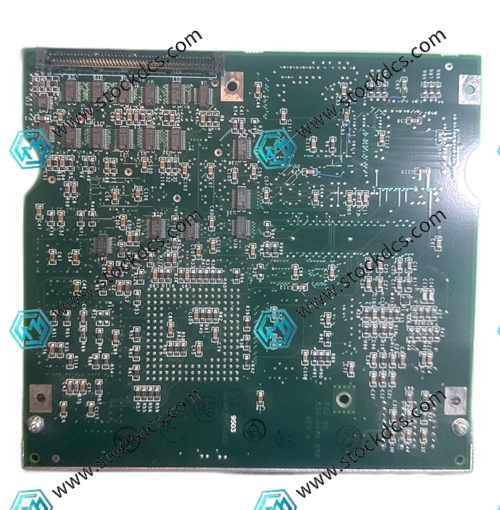

The Silicon Graphics 030-8216-001 printed circuit board is an original motherboard for SGI Indy workstations, belonging to the IP20 architecture, designed specifically for R4000 series processors, with high integration and strong stability.

The model is 030-8216-001, which is an SGI Indy original PCB motherboard.

Compatible with IP20 architecture and supports R4000/R4400 processors.

Using 6-layer industrial grade PCB, the material is stable and resistant to bending.

Onboard integrated graphics card interface, compatible with Indy graphics system.

Built in high-speed memory slot, supports ECC verification.

Integrated I/O control unit, including serial port, parallel port, and audio interface.

Using surface mount technology, the solder joints are uniform and have strong anti-interference ability.

Supports IRIX 5.3/6.2 system with good compatibility.

Onboard power management module, with stable power supply and low power consumption.

Integrate real-time clock (RTC) and CMOS storage unit.

Equipped with overcurrent and overvoltage protection to extend hardware lifespan.

Standard size design, compatible with Indy workstation chassis.

Optimized circuit layout with low signal transmission delay.

Original SGI industrial quality, reliable long-term operation.

Suitable for SGI Indy workstation maintenance and upgrade replacement.

In summary, the 030-8216-001 printed circuit board, with its original adaptability, stable architecture, and complete interfaces, is the core replacement component of SGI Indy workstations, suitable for professional graphics processing and early UNIX system application scenarios.

Product imag
