AEG MODICON MM-PM10-200 Operator Display Panel

AEG MODICON MM-PM10-200 Operator Display Panel

Product Details Introduction

Industrial grade dedicated human-machine interaction terminal, customized for Modicon PM series control systems, with operation logic deeply adapted to industrial scenarios.

Equipped with a 10 inch high-definition LCD display screen, with a resolution of 800 × 480, high color reproduction, and clear presentation of complex process parameters.

Support multi-point capacitive touch operation, response sensitivity<5ms, compatible with physical buttons, suitable for wearing gloves or working in harsh environments.

Native compatible with Modicon PM series and 984 series controllers, the backplane bus is directly connected without the need for adapter modules, plug and play.

Built in 8GB local storage, capable of caching historical operational data, fault logs, and process formulas, supporting offline viewing and export.

Support custom interface layout, edit exclusive operation pages according to industry needs, and provide one click access to commonly used functions to improve operational efficiency.

Industrial grade protection design, with a protection level of IP65, resistant to dust, oil stains, and splashing water droplets, suitable for various scenarios such as workshops and outdoors.

24VDC wide voltage power supply, built-in overvoltage and reverse protection circuit, stable operation within ± 10% voltage fluctuation range.

Integrated sound and light alarm module, supports custom alarm thresholds and prompt methods, quickly alerts for abnormal states, and avoids production risks.

Supports Modbus RTU/TCP communication protocol, can remotely interface with upper computer monitoring system, and achieve centralized operation and maintenance management.

The screen is made of anti glare and scratch resistant tempered glass, ensuring visibility in strong light environments and extending its lifespan to 80000 hours.

Support multi-user permission management, distinguish between operator, engineer, and administrator permissions, prevent erroneous modification of key parameters, and ensure production safety.

Compact design, with a thickness of only 25mm, supports embedded panel installation, saves control cabinet space, and adapts to dense layout requirements.

As a core spare part of the PM series inventory system, replacing the old display panel does not require restructuring the control program, and the replacement time is less than 30 minutes.

Widely adaptable to scenarios such as mechanical manufacturing, chemical process control, energy monitoring, automated production lines, etc., with professional and efficient human-machine interaction experience.

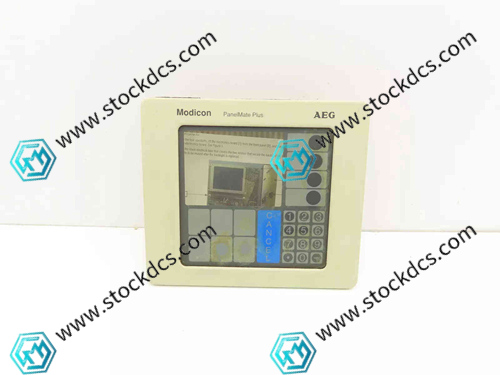

AEG MODICON  MM-PM10-200 Product imag
