TOYOTA TP-1340-3 Output Communication Module

TOYOTA TP-1340-3 Output Communication Module

Product Details Introduction

product overview

The TOYOTA TP-1340-3 output communication module is a communication and signal output interface unit used in Toyota's automated production equipment. It is mainly responsible for converting the command data processed internally by the control system into recognizable communication or control signals for external devices, and stably transmitting them to the execution end. This module is widely used in automated production lines, robot control systems, and detection equipment, and can achieve high-speed and stable data exchange between multiple devices.

Technical parameters (example, subject to actual equipment)

Communication method: Supports industrial bus (such as RS-232, RS-485, CAN, Ethernet, or Toyota customized bus protocol)

Number of output channels: Multiple independent signal outputs (digital/analog based on configuration)

Transmission rate: up to several Mbps (depending on protocol)

Power requirements: DC 5V/12V/24V (depending on model)

Signal isolation: optocoupler or transformer isolation to enhance communication stability

Working environment: -10 ℃~+55 ℃, designed for earthquake resistance and dust prevention

Interface type: terminal block, industrial socket or customized connector

Application scenarios

Production line data communication

Transmission of output signals from PLC or main control system to distributed control unit

Support real-time data exchange between multiple workstations to ensure process collaboration

Linkage between robots and external devices

Send motion control commands to industrial robots

Realize synchronous operation between robots and peripheral devices such as conveying, sorting, and detection

Testing and Quality Control System

Send trigger signals or workpiece identification data to the detection equipment

Output the detection result data to the upper computer or central control system

Remote monitoring and data collection

Output real-time status information from the production site to the monitoring center

Support remote device status feedback and control command transmission

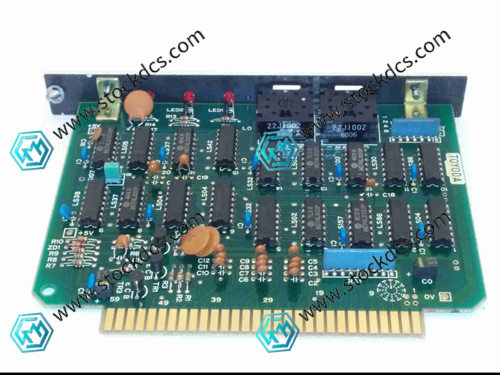

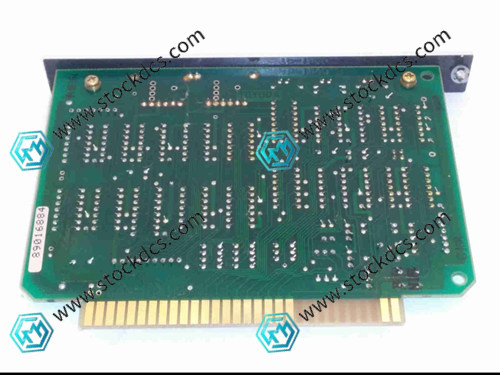

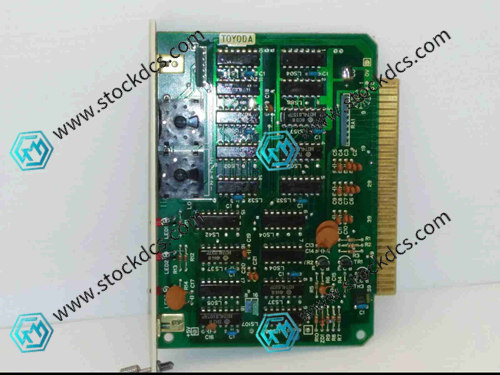

Product imag
